额……老铁们，我图吧老捡垃圾的了。今天简单更一期图吧小白教程，谈谈如何测红色警戒2的游戏帧数

这期需要一个前置各位简单看下

前情提要：【图吧小白教程】微星小飞机Afterburner安装与基本配置（游戏硬件参数监控）

本期主要谈PC端，移动端的话参见

【图吧小白教程】移动端精确显示游戏游戏帧数与参数监控（Sence）

更新本期的原因是隔壁

【粉丝投稿】18年前的am2+板皇！——华硕m3a32-mvp deluxe折腾指南

咱看到了这样一段

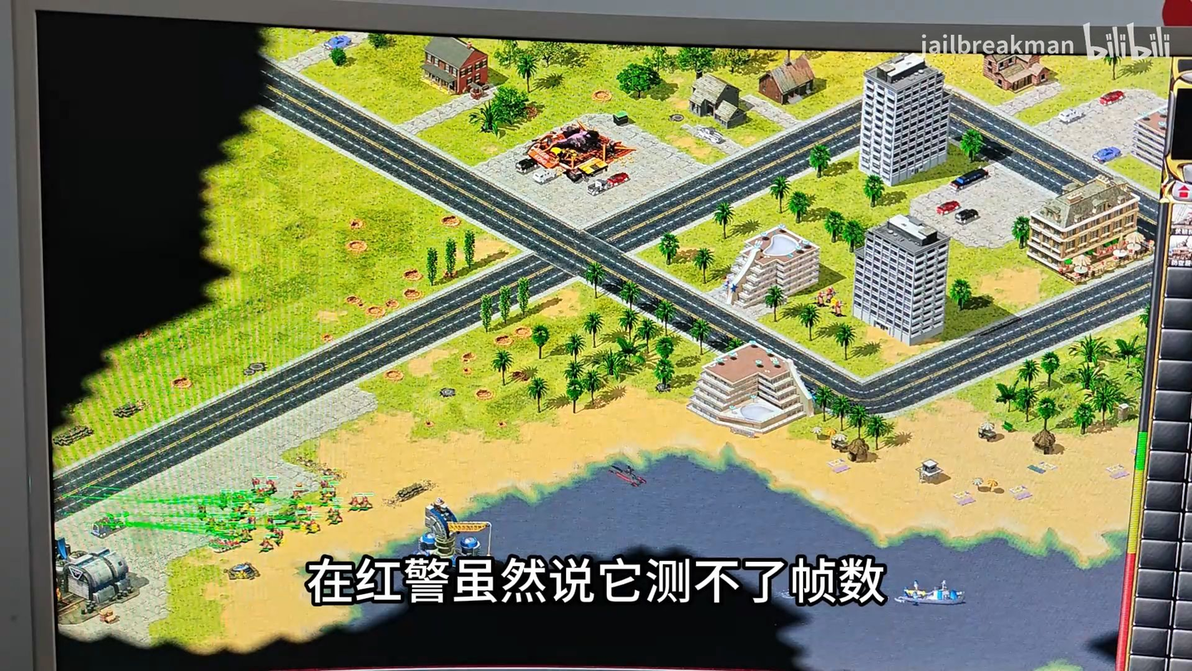

红警测不了帧数这个事其实已经是过去式了

其实现在是能测的而且很容易

红警2在经过这么多年的发展早就解决了各种兼容性问题，从原先的WIN10不可用分辨率最高只有一点到现在已经有了相当现代化的API

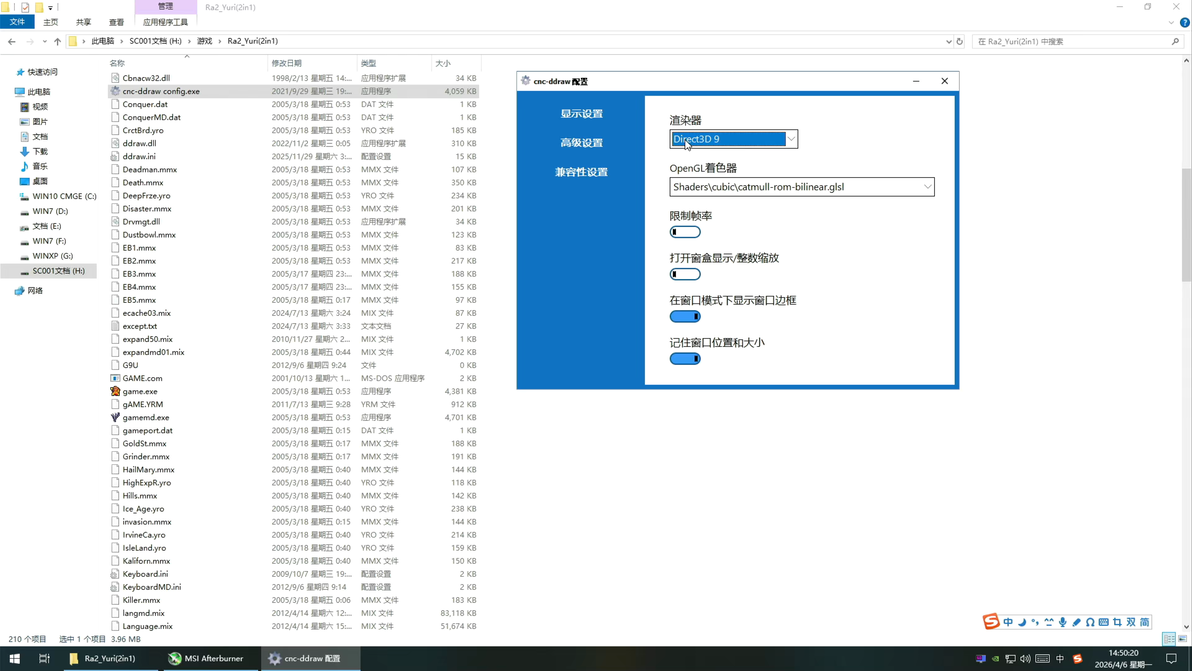

如图所示，找到并解压安装CNC-ddraw即可更改红色警戒2的渲染器API

github/cnc-ddraw

附分流：文件分享

夸克网盘分享

兲度网盘

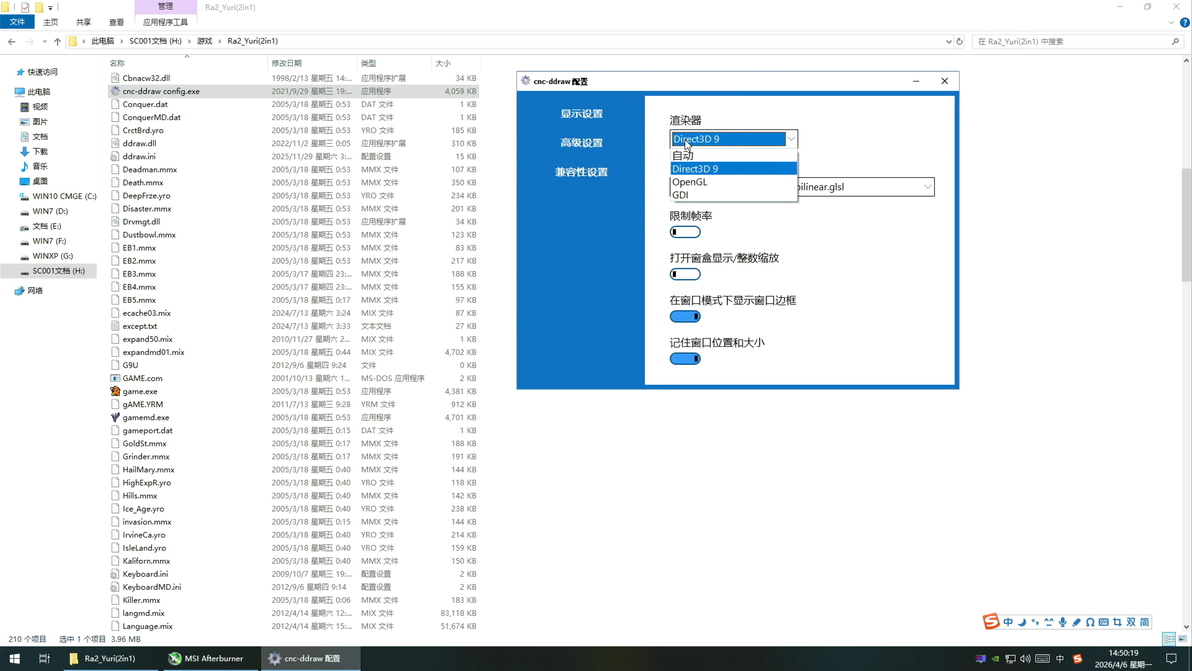

这里我们随便改成D3D9就行

OGL其实也可以

实在不行再用GDI

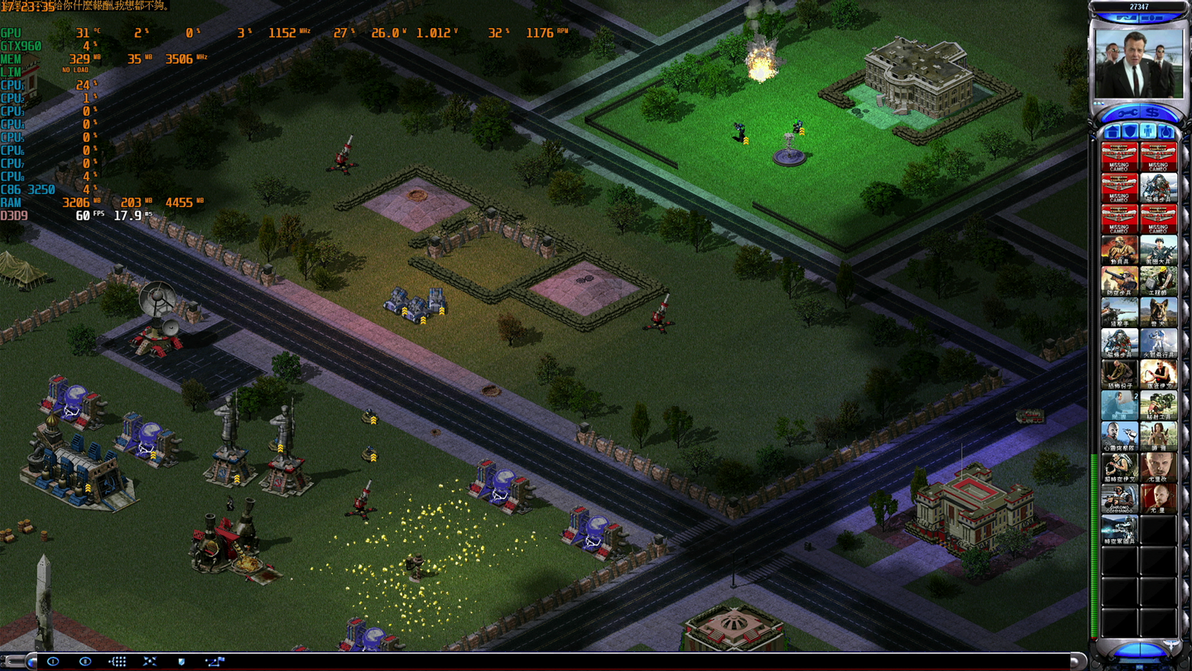

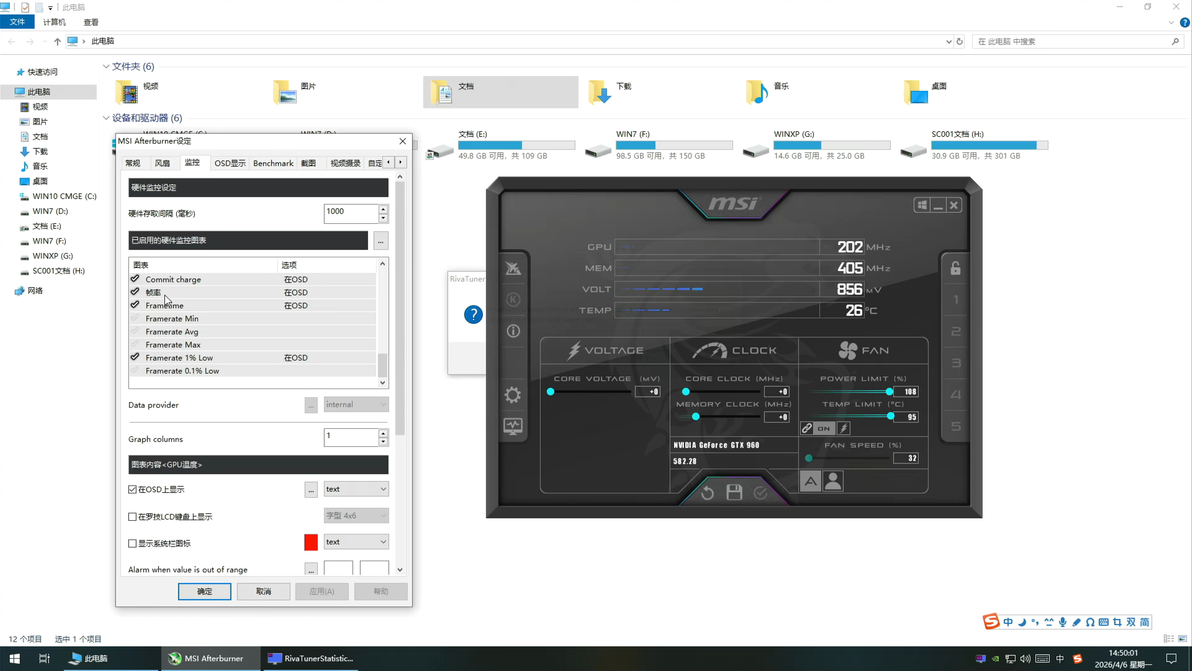

然后再进游戏开afterburner就能有帧数显示了，就这么简单

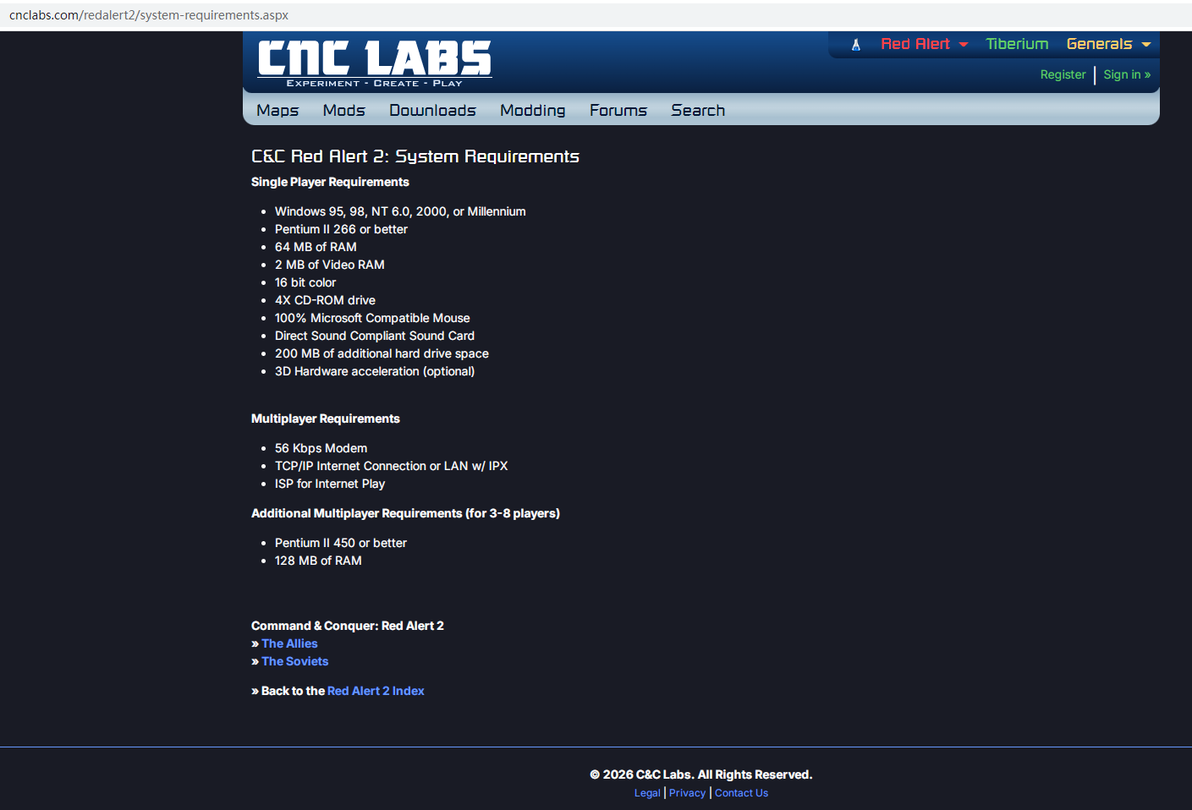

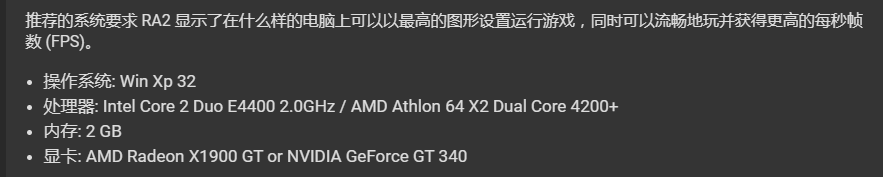

然后说下这玩意的配置需求吧

如介绍所示，这玩意可以支持WINME-WIN11，WINE（也就是说大部分转译环境也能运行）

而支持的API里面D3D9的泛用性如何呢

这么说吧，D3D9的兼容性如今看来是很逆天的

虽然对于红警2那年头属于是未来科技

但是如今回头看D3D9提供了从WIN98到VISTA的逆天支持

更新时间涵盖了从2002-2009年

而硬件方面，支持D3D9的设备如今回头看也相当普遍了

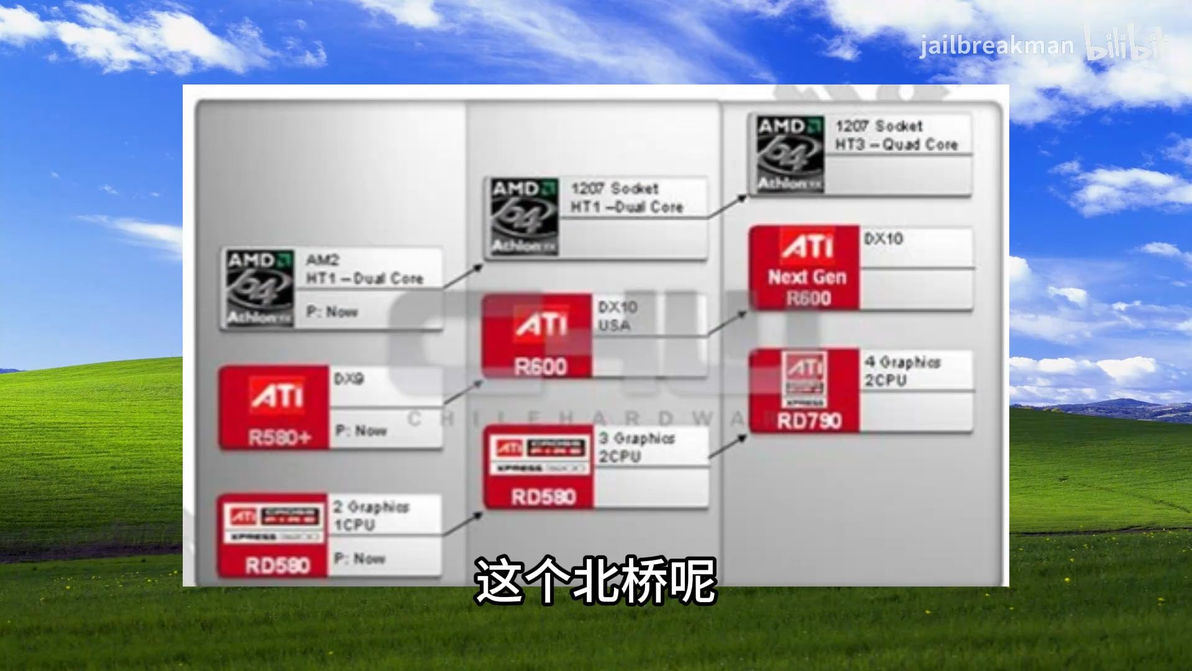

隔壁视频里的北桥本桥集显都有DX9的支持

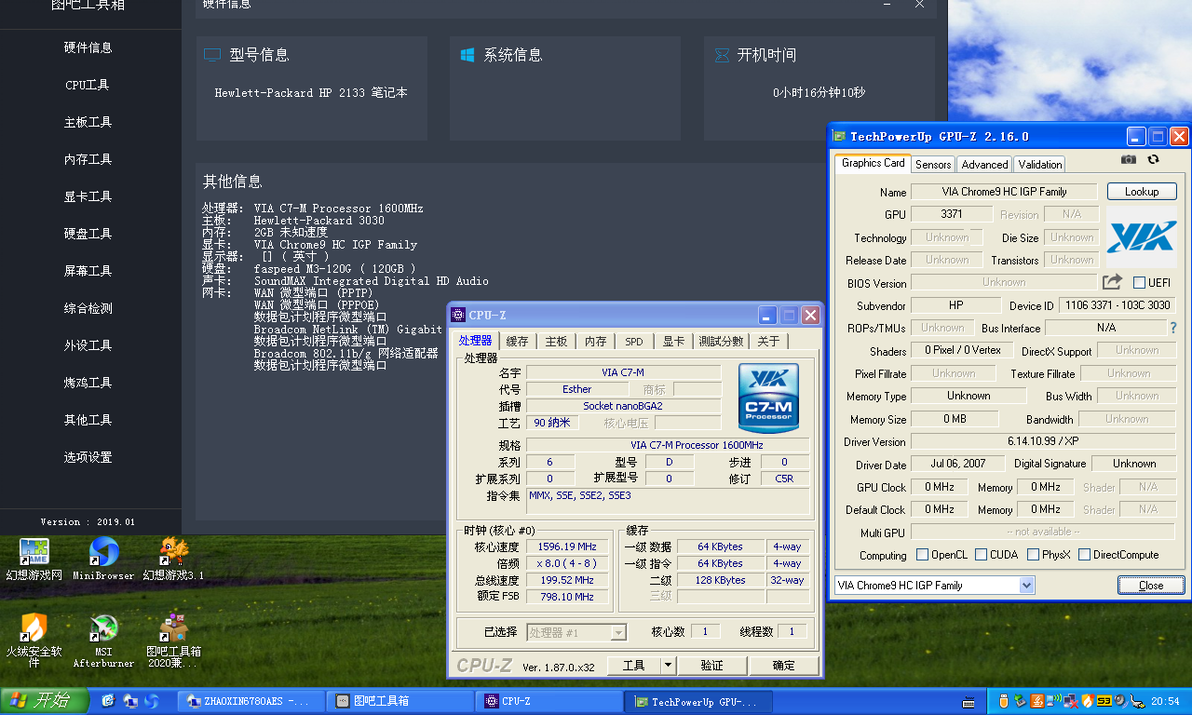

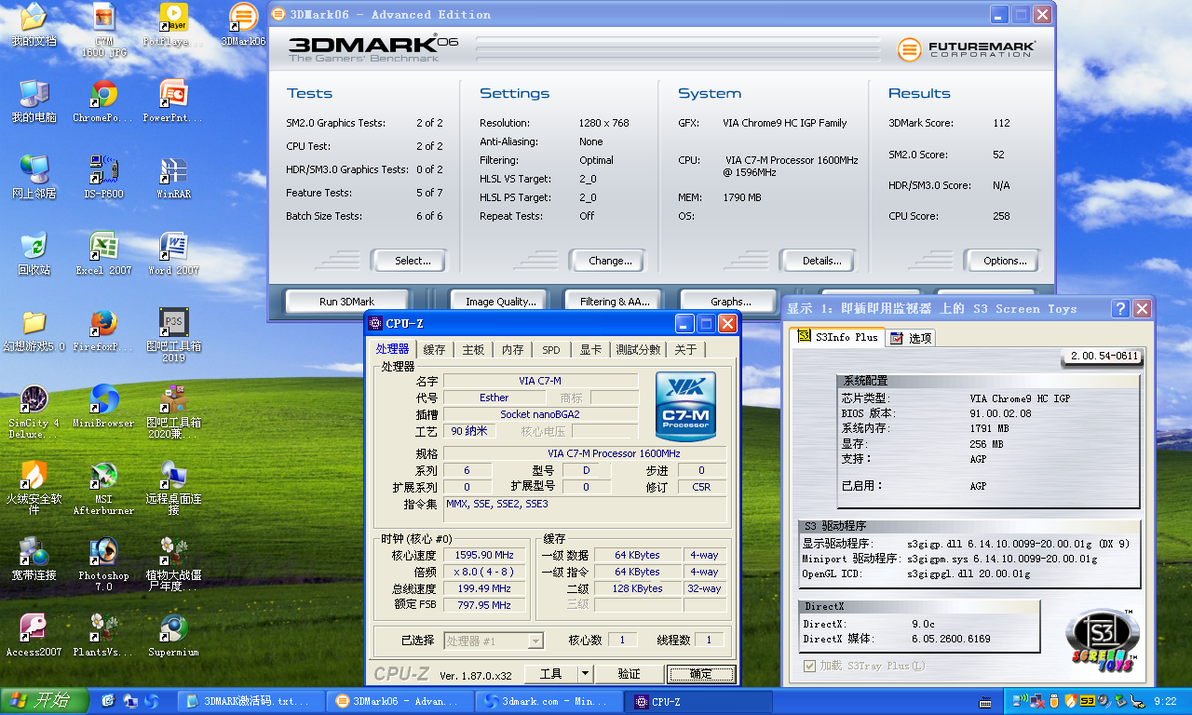

即使是单核时代的VIA芯片组集显都支持D3D9

SM2.0就行

DX9C不一定需要

所以现在看来红警2的帧数测试还是很容易的

不过对于红警2这样的2D游戏来说要想看出来帧数在60以下那得是相当牢的CPU（肘不过图拉丁的牢单核）或者早期D3D9或者更拉的GPU了

还得爆相当多数量的兵才有可能

不然就正常玩这种牢游戏很难会卡，即使ATOM时期的小核心也能正常玩

就这样，谢谢朋友们！

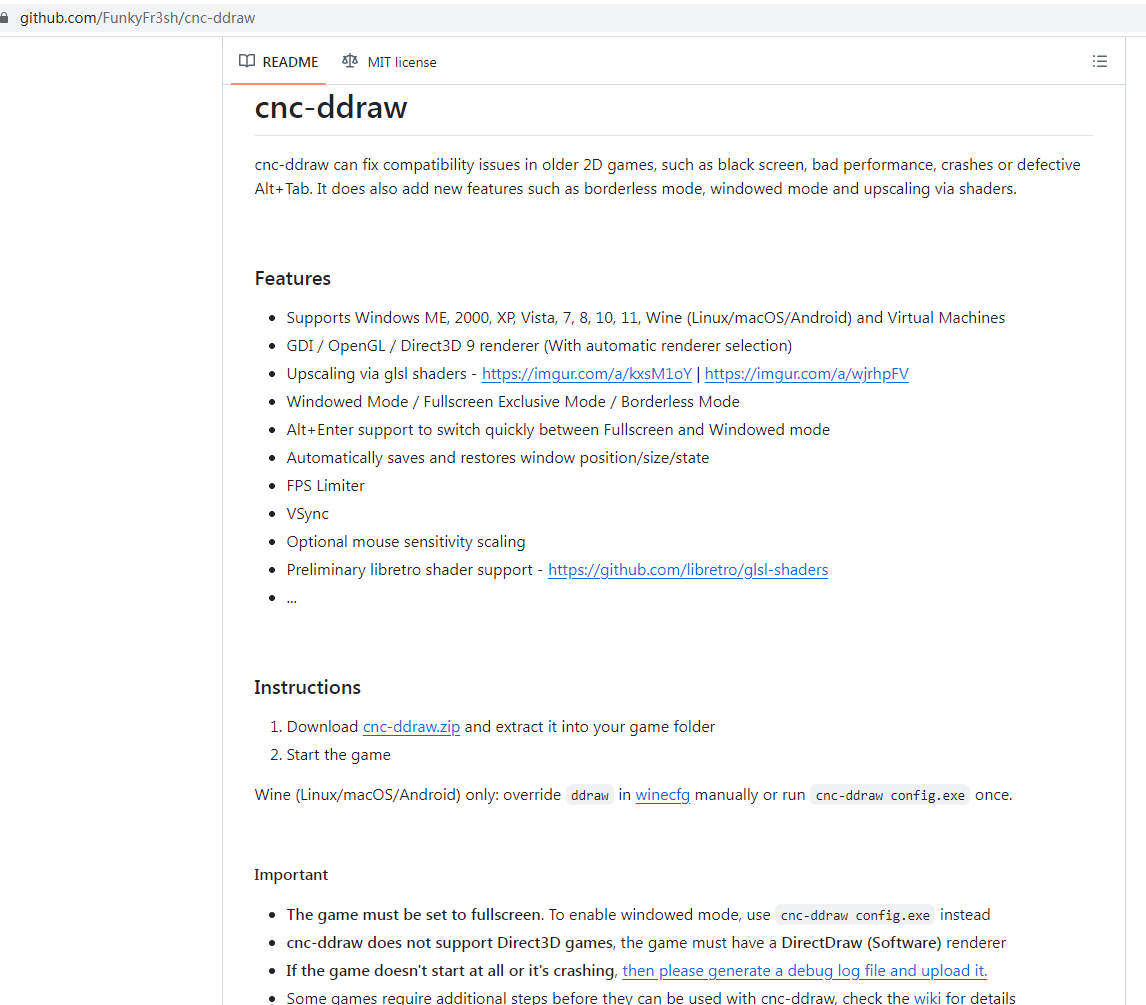

附：cnc-ddraw README

cnc-ddraw can fix compatibility issues in older 2D games, such as black screen, bad performance, crashes or defective Alt+Tab. It does also add new features such as borderless mode, windowed mode and upscaling via shaders.

Features

• Supports Windows ME, 2000, XP, Vista, 7, 8, 10, 11, Wine (Linux/macOS/Android) and Virtual MachinesGDI / OpenGL / Direct3D 9 renderer (With automatic renderer selection)Upscaling via glsl shaders - https://imgur.com/a/kxsM1oY | https://imgur.com/a/wjrhpFVWindowed Mode / Fullscreen Exclusive Mode / Borderless ModeAlt+Enter support to switch quickly between Fullscreen and Windowed modeAutomatically saves and restores window position/size/stateFPS LimiterVSyncOptional mouse sensitivity scalingPreliminary libretro shader support - https://github.com/libretro/glsl-shaders...

Instructions

1. Download cnc-ddraw.zip and extract it into your game folderStart the game

Wine (Linux/macOS/Android) only: override ddraw in winecfg manually or run cnc-ddraw config.exe once.

Important

• The game must be set to fullscreen. To enable windowed mode, use cnc-ddraw config.exe insteadcnc-ddraw does not support Direct3D games, the game must have a DirectDraw (Software) rendererIf the game doesn't start at all or it's crashing, then please generate a debug log file and upload it.Some games require additional steps before they can be used with cnc-ddraw, check the wiki for details

Hotkeys

• [Alt] + [Enter] = Switch between windowed and fullscreen mode[Ctrl] + [Tab] = Unlock cursor[Right Alt] + [Right Ctrl] = Unlock cursor[Alt] + [Page Down] = Maximize window

Supported Games

• 101: The Airborne Invasion of Normandy7th LegionAbomination - The Nemesis ProjectAddiction PinballAge of EmpiresAge of Empires IIAge of Empires II: The ConquerorsAge of Empires: The Rise of RomeAge of WondersAge of Wonders 2Age of Wonders: Shadow MagicAgharta the Hollow EarthAirline 69: Return to CasablancaAirline Tycoon DeluxeAlien NationsAmerican Conquest (Steam+GOG)American Girls Dress DesignerAmerzoneAncient ConquestAncient EvilAnno 1602: Creation of a New WorldAnother WarAnstoss 3Arcanum: Of Steamworks and Magick ObscuraArcatera the Dark BrotherhoodArmy Men 2Army Men: Air TacticsArmy Men: Toys in SpaceArmy Men: World War / Army Men: Operation MeltdownArthur's Pet ChaseArthur's Sand Castle ContestArthur's Wilderness RescueAtlantis 2: Beyond AtlantisAtlantis 3: The New WorldAtlantis: The Lost TalesAtomic BombermanAtroxBaldr Force EXEBaldur's GateBaldur's Gate 2Balls of Steel v1.2Barbie(R) Photo DesignerBarbie(tm) Beach Vacation(tm)Batman: Justice UnbalancedBatman: Toxic ChillBejeweled 2 DeluxeBirthright: The Gorgons AllianceBlade & SwordBlood II - The ChosenBlue's 123 Time ActivitiesBlue's Treasure HuntBroken SwordBroken Sword 2: The Smoking MirrorCaesar III (Sierra - 1998)Call To Power 2Callus 95 - CPS-1 (Capcom Play System 1) emulatorCapitalism IICapitalism LabCaptain ClawCarmageddonCarmageddon 2Casino Empire (AKA Hoyle Casino)Championship Manager 99-00Chaos GateClansClose Combat 2: A Bridge Too FarClose Combat 3: The Russian FrontClose Combat 4: The Battle of the BulgeClose Combat 5: Invasion: NormandyClueFinders 3rd Grade AdventuresClueFinders 4th Grade AdventuresClueFinders 5th Grade AdventuresClueFinders 6th Grade AdventuresClueFinders Math Adventures 1.0ClueFinders Math Adventures 2.0ClueFinders Mystery MansionClueFinders Search and Solve AdventuresClueFinders The Incredible Toy Store AdventureClueFinders(R) Reading Adventures Ages 9-12Command & Conquer GoldCommand & Conquer: Red AlertCommand & Conquer: Red Alert 2Command & Conquer: Red Alert 2: Yuri's RevengeCommand & Conquer: Sole SurvivorCommand & Conquer: Tiberian SunCommandosCommandos - Beyond The Call Of DutyCommandos 2Commando 2004 (only with /ddraw command line parameter)ConstructorCorsairs GoldCossacks (Steam+GOG)Cultures - The Discovery of VinlandCultures 2Cyber Gladiators (needs CyberGladiators_Patch_Win_EN_WinXP.zip)Cyberchase Carnival ChaosCyberchase Castleblanca QuestCydonia Mars - The First Manned MissionCloud Kingdom 3 (only with /ddraw command line parameter)Dark EarthDark Reign: The Future of WarDark Secret of AfricaDay Of The TentacleDaytonaDaytona USA (Sega - 1996)Deadlock 2Deadly TideDelta ForceDesperados: Wanted Dead or AliveDiabloDiablo 2Diablo 2: Lord of DestructionDiablo: HellfireDie by the SwordDisciplesDisciples 2 - Rise of the ElvesDiscoworld NoirDivine DivinityDominion - Storm Over Gift 3Doom 95DraculaDragon Throne: Battle of Red CliffsDreams to RealtyDuelSaviorDuelSavior: JusticeDune 2000Dungeon KeeperDungeon Keeper 2Economic WarEggsuckerEmperor: Rise of the Middle KingdomEnemy InfestationEscape Velocity NovaExcalibur 2555ADF-16 AgressorF-16 Multirole FighterF-22 RaptorFableFairy Tale About Father Frost, Ivan and NastyaFalcon 4.0 (Microprose version)FalloutFallout 2Fallout Tactics: Brotherhood of SteelFinal fantasy VIIFinal fantasy VIIIFinal Liberation: Warhammer Epic 40000 (GOG)Freddi FishFreddi Fish 4Freddi Fish's One-Stop Fun ShopFreddi Fish: Maze MadnessFreddi Fish: The Case of the Creature of Coral CoveFreddi Fish: The Case of the Haunted SchoolhouseFreddi Fish: The Case of the Hogfish Rustlers of Briny GulchFreddi Water WorriesFull ThrottleFuture Cop L.A.P.DG-PoliceGateway (Remake)GeneforgeGilbert Goodmate And The Mushroom Of PhungoriaGorasul: The Legacy of the DragonGrand Theft AutoGrand Theft Auto: London 1961Grand Theft Auto: London 1969Gromada RevengeGruntzHamtaro: Wake Up Snoozer!HandkerchiefHard Truck: Road to VictoryHeart of DarknessHearts of Iron 2Heroes Chronicles: Clash of the DragonsHeroes Chronicles: Conquest of the UnderworldHeroes Chronicles: Masters of the ElementsHeroes Chronicles: Warlords of the WastelandHeroes of Might and MagicHeroes of Might and Magic IIHeroes of Might and Magic IIIHeroes of Might and Magic IVHexen 95Hooligans: Storm over EuropeHugo GoldHugo Wild RiverIcewind DaleIcewind Dale 2IgnitionImperialism 2: The Age of ExplorationIndiana Jones and the Fate of AtlantisIndiana Jones and the Last CrusadeInfantry OnlineInterstate 76Invictus: In the Shadow of OlympusJagged Alliance 2Jagged Alliance 2: Unfinished BusinessJagged Alliance 2: WildfireJazz Jackrabbit 2Jeff Wayne's The War of the WorldsKarma Immortal WrathKilling TimeKings Quest 8: Mask of EternityKKND XtremeKKND2: KrossfireKnights and Merchants: The Peasants RebellionKnights and Merchants: The Shattered KingdomKohan: Immortal SovereignsKonungKonung 2Lands of Lore 2 Guardian of Destiny (Software mode only)Lapis (lapis.mgame.com)Last BronxLinks ExtremeLionheart - Legacy of the CrusaderLittle Bear Kindergarten Thinking AdventuresLittle Bear Preschool Thinking AdventuresLittle Bear Rainy Day ActivitiesLittle Bear Toddler Discovery AdventuresLocomotionLode Runner 2Lost Vikings 2M.A.X. 2 Mechanized Assault & ExplorationMadeline 1st Grade MathMadeline 2nd Grade MathMageslayerMajesty GoldMajesty Gold HDMario Sorb 3Meat PuppetMech Warrior 3Megaman X4Metal Gear SolidMetal KnightMob Rule (AKA Constructor: Street Wars / Street Wars: Constructor Underworld)MoorhuhnMoorhuhn 2Moorhuhn Adventure: Fluch des GoldesMoorhuhn Adventure: Schatz des Pharao and Fluch des Goldes)Moorhuhn Winter EditonMiG-29 FulcrumMission Deliver KindnessMoto RacerMoto Racer 2Nancy Drew: Danger on Deception IslandNancy Drew: Last Train to Blue Moon CanyonNancy Drew: Message in a Haunted MansionNancy Drew: Secrets Can KillNancy Drew: Stay Tuned For DangerNancy Drew: The Secret of Shadow RanchNancy Drew: Treasure in the Royal TowerNBA Action '98NBA Full Court PressNeed For Speed III: Hot PursuitNeed For Speed: High StakesNeo Sonic UniverseNew RobinsonNexusTkNightmare CreaturesNinja Jonder DeluxeNox (Westwood - 2000)Oddworld: Abe's ExoddusOddworld: Abe's OddyseeOriginal WarOutlawsOutliveOutwars (software mode)Pacific GeneralPajama SamPajama Sam 3Pajama Sam 3: You Are What You Eat From Your Head To Your FeetPajama Sam's Games to Play on Any DayPajama Sam's One-Stop Fun ShopPajama Sam(r): Life is Rough When You Lose Your Stuff(tm)Pajama Sam: No Need to Hide When It's Dark OutsidePandora's Box Puzzle GamePanzer DragoonPatrician 3Pax ImperiaPharaoh (Sierra - 1999)Pizza Syndicate (AKA Fast Food Tycoon)PlatypusPopulous: The BeginningPoseidon: Master of AtlantisPro Pinball - Big Race USAPro Pinball - Fantastic JourneyPutt-Putt and Pep's Balloon-o-RamaPutt-Putt and Pep's Dog On A StickPutt-Putt Joins the CircusPutt-Putt Saves The ZooPutt-Putt's One-Stop Fun ShopPutt-Putt: Pep's Birthday SurprisePutt-Putt: Travels Through TimeQuest for Glory 5Rage of MagesRage of Mages 2Railroad Tycoon IIReader Rabbit 1st GradeReader Rabbit 2nd GradeReader Rabbit Dreamship TalesReader Rabbit KindergartenReader Rabbit Learn To Read With PhonicsReader Rabbit Learning CreationsReader Rabbit Math Ages 4-6Reader Rabbit Preschool 2002Reader Rabbit Reading Ages 4-6Reader Rabbit Reading Ages 6-9Reader Rabbit Thinking Ages 4-6 (US)Reader Rabbit ToddlerReader Rabbit's(R) Math Ages 6 - 9 (2002)Real WarRed Baron 3DReksio and Captain Nemo (Reksio i Kapitan Nemo)Reksio and Kretes in Action (Reksio i Kretes w Akcji!)Reksio and the Pirate Treasure (Reksio i Skarb Piratów)Reksio and the Time Machine (Reksio i Wehikuł Czasu)Reksio and the UFO (Reksio i Ufo)Reksio and the Wizards (Reksio i Czarodzieje)Rent-A-HeroResurrection - The Return of the Black Dragon (software mode)Return to KrondorRising Lands (patched)Road RashRobin Hood - The Legend of SherwoodRoland Garros 98 (software mode)RollerCoaster TycoonSanitariumScooby-Doo(TM), Case File #2 The Scary Stone DragonScooby-Doo(TM), Phantom of the Knight(TM)Scooby-Doo(TM), Showdown in Ghost Town(TM)Sega RallySega Touring CarSepterra CoreSettlers 3Seven Kingdoms IIShadow FlareShadow WatchShogo - Mobile Armor DivisionSilver (needs "SilverUK GeForce2 And Radeon Patch")Sim City 3000Sim CopterSimTunesSim Theme Park (aka Theme Park World)SimCoaster / Theme Park IncSimon the Sorcerer 1/2 (windows 95 version)Sonic 3D BlastSoldiers At WarSpace RangersSpec Ops - Ranger Assault (software mode)SpongeBob SquarePants: TypingSPY Fox : Some Assembly RequiredSPY Fox in Dry CerealSPY Fox: Hold the MustardSPY Fox: Operation OzoneSquad LeaderStar Trek Away TeamStar Trek GenerationsStar Wars Anakin's SpeedwayStar Wars Early Learning Activity CenterStar Wars Episode I: The Gungan FrontierStar Wars Jedi Knight: Dark Forces IIStar Wars RebellionStar Wars Yoda's ChallengeStar Wars: Droid WorksStar Wars: Galactic BattlegroundsStar Wars: Galactic Battlegrounds: Clone CampaignsStar Wars: Pit DroidsStarCraftStarCraft: BroodwarsStarFlyers Alien Space ChaseStarFlyers Royal Jewel RescueStarship TitanicStart Trek ArmadaSteel Panthers: World At WarStrawberry Shortcake: Amazing Cookie PartyStronghold Crusader Extreme HDStronghold Crusader HDStronghold HDSudden Strike 2Superbike 2000SwarogThe Jungle Book Groove PartyThe Curse Of Monkey IslandThe DigThe Last ExpressThe Missing on Lost IslandThe NeverhoodThe Next WorldsThe Powerpuff Girls - Princess SnorebucksThe Powerpuff Girls(TM) Mojo Jojo's Clone ZoneThe Rocky Interactive Horror ShowThe Sex FilesThe X-Files DVDTheme HospitalThree Kingdoms: Fate of the DragonThrone of DarknessThunder BrigadeTianLong BaBuTone RebellionTotal AnnihilationTotal Annihilation (Unofficial Beta Patch v3.9.02)Total Annihilation: KingdomsToy StoryTridonisTwisted MetalTwisted Metal 2Tzar: The Burden of the CrownUnrealUprising 2: Lead and DestroyUprising: Join or DieVermeerVersailles 1685 : Complot à la cour du Roi SoleilVirtua CopVirtua Cop 2Virtua Fighter 2Virtua Fighter PCVirtual SpringfieldVirtual On: Cyber TroopersWarGamesWar WindWar Wind II - Human OnslaughtWarcraft 2WarCraft 2000: Nuclear EpidemicWarlords 3: Darklords RisingWarlords BattlecryWarlords Battlecry 2Warlords Battlecry 3Weird WarWheel Of FortuneWing Commander - The Kilrathi SagaWizardry 8Wizards and WarriorsWorms 2Worms ArmageddonZ & Z Expansion KitZeus: Master of OlympusZoombinis Island OdysseyZoombinis Logical JourneyZoombinis Mountain RescueZork NemesisZuma Deluxe...

There are a lot more games supported but I don't usually update the list, just give it a try and if it doesn't work then check the wiki and the instructions above.

3dfxarchive.com/directx.htm

Page updated - 31/07/2015

Welcome the the DirectX Redistributable Download Section...

This Page contains a collection from all previous upto the latest DirectX Releases...

( Discuss this Page in the Forums )

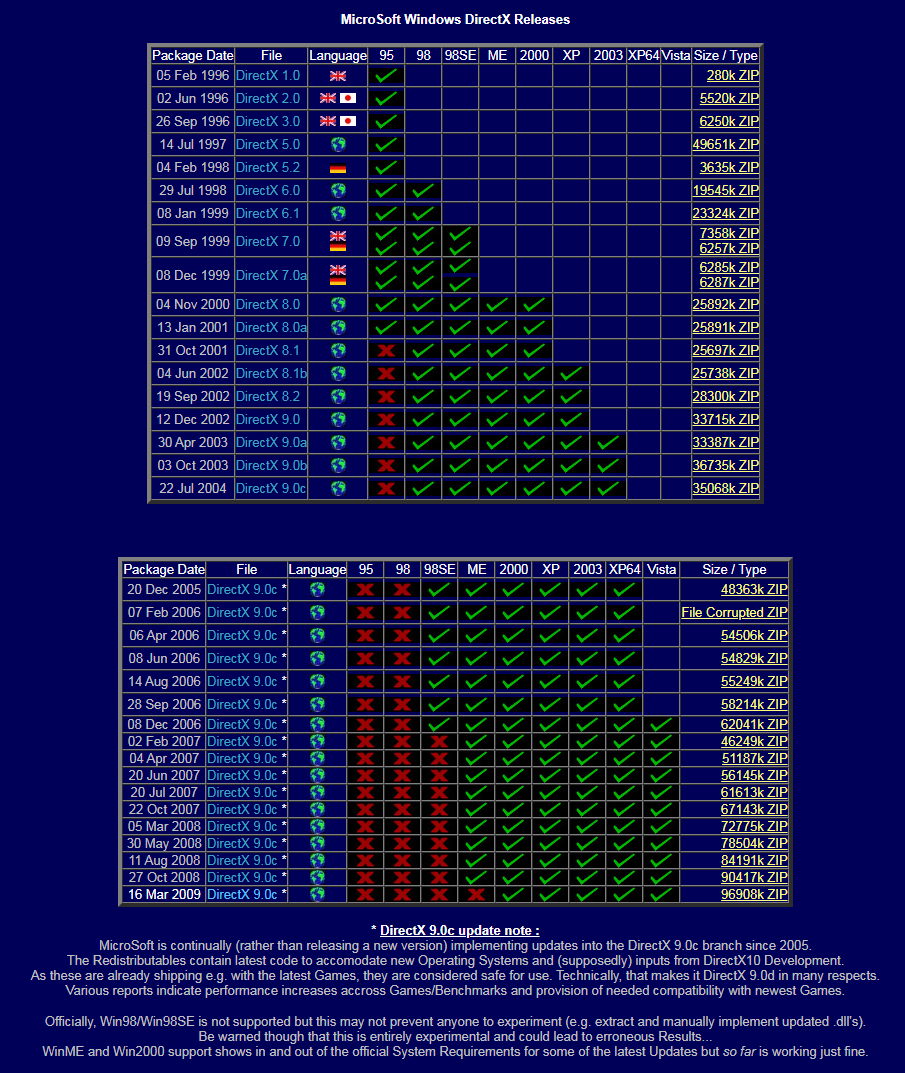

MicroSoft Windows DirectX Releases

Package Date

File

Language

95

98

98SE

ME

2000

XP

2003

XP64

Vista

Size / Type

05 Feb 1996

DirectX 1.0

280k ZIP

02 Jun 1996

DirectX 2.0

5520k ZIP

26 Sep 1996

DirectX 3.0

6250k ZIP

14 Jul 1997

DirectX 5.0

49651k ZIP

04 Feb 1998

DirectX 5.2

3635k ZIP

29 Jul 1998

DirectX 6.0

19545k ZIP

08 Jan 1999

DirectX 6.1

23324k ZIP

09 Sep 1999

DirectX 7.0

7358k ZIP

6257k ZIP

08 Dec 1999

DirectX 7.0a

6285k ZIP

6287k ZIP

04 Nov 2000

DirectX 8.0

25892k ZIP

13 Jan 2001

DirectX 8.0a

25891k ZIP

31 Oct 2001

DirectX 8.1

25697k ZIP

04 Jun 2002

DirectX 8.1b

25738k ZIP

19 Sep 2002

DirectX 8.2

28300k ZIP

12 Dec 2002

DirectX 9.0

33715k ZIP

30 Apr 2003

DirectX 9.0a

33387k ZIP

03 Oct 2003

DirectX 9.0b

36735k ZIP

22 Jul 2004

DirectX 9.0c

35068k ZIP

Package Date

File

Language

95

98

98SE

ME

2000

XP

2003

XP64

Vista

Size / Type

20 Dec 2005

DirectX 9.0c *

48363k ZIP

07 Feb 2006

DirectX 9.0c *

File Corrupted ZIP

06 Apr 2006

DirectX 9.0c *

54506k ZIP

08 Jun 2006

DirectX 9.0c *

54829k ZIP

14 Aug 2006

DirectX 9.0c *

55249k ZIP

28 Sep 2006

DirectX 9.0c *

58214k ZIP

08 Dec 2006

DirectX 9.0c *

62041k ZIP

02 Feb 2007

DirectX 9.0c *

46249k ZIP

04 Apr 2007

DirectX 9.0c *

51187k ZIP

20 Jun 2007

DirectX 9.0c *

56145k ZIP

20 Jul 2007

DirectX 9.0c *

61613k ZIP

22 Oct 2007

DirectX 9.0c *

67143k ZIP

05 Mar 2008

DirectX 9.0c *

72775k ZIP

30 May 2008

DirectX 9.0c *

78504k ZIP

11 Aug 2008

DirectX 9.0c *

84191k ZIP

27 Oct 2008

DirectX 9.0c *

90417k ZIP

16 Mar 2009

DirectX 9.0c *

96908k ZIP

* DirectX 9.0c update note :

MicroSoft is continually (rather than releasing a new version) implementing updates into the DirectX 9.0c branch since 2005.

The Redistributables contain latest code to accomodate new Operating Systems and (supposedly) inputs from DirectX10 Development.

As these are already shipping e.g. with the latest Games, they are considered safe for use. Technically, that makes it DirectX 9.0d in many respects.

Various reports indicate performance increases accross Games/Benchmarks and provision of needed compatibility with newest Games.

Officially, Win98/Win98SE is not supported but this may not prevent anyone to experiment (e.g. extract and manually implement updated .dll's).

Be warned though that this is entirely experimental and could lead to erroneous Results...

WinME and Win2000 support shows in and out of the official System Requirements for some of the latest Updates but so far is working just fine.

Above DirectX 9.0c Operating System requirements are likely not 100% correct, as conflicting information exists from different sources (e.g. Wikipedia).

If you see a Version correctly installing despite being listed here as officially not supported (or vice versa), let me know...

Important Notes -

The DirectX Versions above are offered for archival and/or reference purposes.

(those come in handy when building dedicated retro/legacy PC's or running Software that requires a certain DirectX Version)

DirectX can not be uninstalled by normal means!

Since DirectX commits significant changes to the installed Windows, it is recommended to Backup all Data before installation.

Either create a Restore Point with your OS or use equivalent Utility Software.

For a forced uninstallation of DirectX, the use of a 3rd party Software like DirectX Buster is required.

Current Windows versions already ship/install with their own DirectX, thus installation of an older Version than already installed is not normally possible.
