背包系统源码及工程（截止第三节课）
打工人小棋
编辑于 2023年11月21日 07:26
收录于文集
共8篇

02:43
最全面的游戏背包系统讲解 | 技术原理分析 | 框架逻辑设计| 背包+抽卡+整理一网打尽 | 小棋出品，必属精品
9.5万
175

背包系统目前完成了三节课内容：

1. UGUI界面拼接

2. 存储框架的设计

3. 界面和逻辑书写

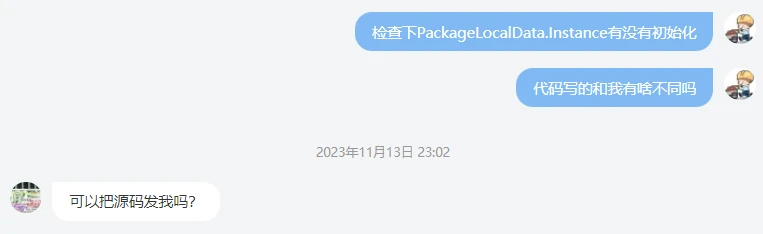

有些同学遇到了bug但是不知道怎么排查，因此这里把前三节课涉及到的代码部分贴出来，方便大家对照。

工程项目等整个课程完结会发出来，前三节课的工程先放在知识星球，见文末。

PackageTable

静态数据：配置的物品id、名称、图片路径

代码块
C#
自动换行
复制代码
using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

[CreateAssetMenu(menuName = "XiaoQi/PackageTable", fileName = "PackageTable")]
public class PackageTable : ScriptableObject
{
    public List<PackageTableItem> DataList = new List<PackageTableItem>();
}

[System.Serializable]
public class PackageTableItem
{
    public int id;
    public int type;
    public int star;
    public string name;
    public string description;
    public string skillDescription;
    public string imagePath;
}
复制成功

PackageLocalData

动态数据：物品的等级数量等信息

代码块
C#
自动换行
复制代码
using UnityEngine;
using System.Collections.Generic;

public class PackageLocalData
{
    private static PackageLocalData _instance;

    public static PackageLocalData Instance
    {
        get
        {
            if (_instance == null)
            {
                _instance = new PackageLocalData();
            }
            return _instance;
        }
    }


    public List<PackageLocalItem> items;

    public void SavePackage()
    {
        string inventoryJson = JsonUtility.ToJson(this);
        PlayerPrefs.SetString("PackageLocalData", inventoryJson);
        PlayerPrefs.Save();
    }

    public List<PackageLocalItem> LoadPackage()
    {
        if (items != null)
        {
            return items;
        }
        if (PlayerPrefs.HasKey("PackageLocalData"))
        {
            string inventoryJson = PlayerPrefs.GetString("PackageLocalData");
            PackageLocalData packageLocalData = JsonUtility.FromJson<PackageLocalData>(inventoryJson);
            items = packageLocalData.items;
            return items;
        }
        else
        {
            items = new List<PackageLocalItem>();
            return items;
        }
    }
}


[System.Serializable]
public class PackageLocalItem
{
    public string uid;
    public int id;
    public int num;
    public int level;
    public bool isNew;

    public override string ToString()
    {
        return string.Format("[id]:{0} [num]:{1}", id, num);
    }
}
复制成功

GameManager

逻辑类、整个游戏的管理者和中枢

代码块
C#
自动换行
复制代码
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class GameManager : MonoBehaviour
{
    private static GameManager _instance;
    private PackageTable packageTable;

    private void Awake()
    {
        _instance = this;
        DontDestroyOnLoad(gameObject);
    }

    public static GameManager Instance
    {
        get
        {
            return _instance;
        }
    }

    // Start is called before the first frame update
    void Start()
    {
        UIManager.Instance.OpenPanel(UIConst.PackagePanel);
        // print(GetPackageLocalData().Count);
        // print(GetPackageTable().DataList.Count);
    }

    public PackageTable GetPackageTable()
    {
        if (packageTable == null)
        {
            packageTable = Resources.Load<PackageTable>("TableData/PackageTable");
        }
        return packageTable;
    }

    public List<PackageLocalItem> GetPackageLocalData()
    {
        return PackageLocalData.Instance.LoadPackage();
    }

    public PackageTableItem GetPackageItemById(int id)
    {
        List<PackageTableItem> packageDataList = GetPackageTable().DataList;
        foreach (PackageTableItem item in packageDataList)
        {
            if (item.id == id)
            {
                return item;
            }
        }
        return null;
    }

    public PackageLocalItem GetPackageLocalItemByUId(string uid)
    {
        List<PackageLocalItem> packageDataList = GetPackageLocalData();
        foreach (PackageLocalItem item in packageDataList)
        {
            if (item.uid == uid)
            {
                return item;
            }
        }
        return null;
    }


    public List<PackageLocalItem> GetSortPackageLocalData()
    {
        List<PackageLocalItem> localItems = PackageLocalData.Instance.LoadPackage();
        localItems.Sort(new PackageItemComparer());
        return localItems;
    }


}


public class PackageItemComparer : IComparer<PackageLocalItem>
{
    public int Compare(PackageLocalItem a, PackageLocalItem b)
    {
        PackageTableItem x = GameManager.Instance.GetPackageItemById(a.id);
        PackageTableItem y = GameManager.Instance.GetPackageItemById(b.id);
        // 首先按star从大到小排序
        int starComparison = y.star.CompareTo(x.star);

        // 如果star相同，则按id从大到小排序
        if (starComparison == 0)
        {
            int idComparison = y.id.CompareTo(x.id);
            if (idComparison == 0)
            {
                return b.level.CompareTo(a.level);
            }
            return idComparison;
        }

        return starComparison;
    }
}
复制成功

BasePanel

界面的基类

代码块
C#
自动换行
复制代码
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class BasePanel : MonoBehaviour
{
    protected bool isRemove = false;
    protected new string name;

    protected virtual void Awake()
    {
    }

    public virtual void SetActive(bool active)
    {
        gameObject.SetActive(active);
    }

    public virtual void OpenPanel(string name)
    {
        this.name = name;
        SetActive(true);
    }

    public virtual void ClosePanel()
    {
        isRemove = true;
        SetActive(false);
        Destroy(gameObject);
        if (UIManager.Instance.panelDict.ContainsKey(name))
        {
            UIManager.Instance.panelDict.Remove(name);
        }
    }
}
复制成功

UIManager

界面管理器

代码块
C#
自动换行
复制代码
using System.Collections;
using System.Collections.Generic;
using System;
using UnityEngine;
public class UIManager
{
    private static UIManager _instance;
    private Transform _uiRoot;
    // 路径配置字典
    private Dictionary<string, string> pathDict;
    // 预制件缓存字典
    private Dictionary<string, GameObject> prefabDict;
    // 已打开界面的缓存字典
    public Dictionary<string, BasePanel> panelDict;

    public static UIManager Instance
    {
        get
        {
            if (_instance == null)
            {
                _instance = new UIManager();
            }
            return _instance;
        }
    }

    public Transform UIRoot
    {
        get
        {
            if (_uiRoot == null)
            {
                if (GameObject.Find("Canvas"))
                {
                    _uiRoot = GameObject.Find("Canvas").transform;
                }
                else
                {
                    _uiRoot = new GameObject("Canvas").transform;
                }
            };
            return _uiRoot;
        }
    }

    private UIManager()
    {
        InitDicts();
    }

    private void InitDicts()
    {
        prefabDict = new Dictionary<string, GameObject>();
        panelDict = new Dictionary<string, BasePanel>();

        pathDict = new Dictionary<string, string>()
        {
            {UIConst.PackagePanel, "Package/PackagePanel"},
        };
    }

    public BasePanel GetPanel(string name)
    {
        BasePanel panel = null;
        // 检查是否已打开
        if (panelDict.TryGetValue(name, out panel))
        {
            return panel;
        }
        return null;
    }

    public BasePanel OpenPanel(string name)
    {
        BasePanel panel = null;
        // 检查是否已打开
        if (panelDict.TryGetValue(name, out panel))
        {
            Debug.Log("界面已打开: " + name);
            return null;
        }

        // 检查路径是否配置
        string path = "";
        if (!pathDict.TryGetValue(name, out path))
        {
            Debug.Log("界面名称错误，或未配置路径: " + name);
            return null;
        }

        // 使用缓存预制件
        GameObject panelPrefab = null;
        if (!prefabDict.TryGetValue(name, out panelPrefab))
        {
            string realPath = "Prefab/Panel/" + path;

            panelPrefab = Resources.Load<GameObject>(realPath) as GameObject;
            prefabDict.Add(name, panelPrefab);
        }

        // 打开界面
        GameObject panelObject = GameObject.Instantiate(panelPrefab, UIRoot, false);
        panel = panelObject.GetComponent<BasePanel>();
        panelDict.Add(name, panel);
        panel.OpenPanel(name);
        return panel;
    }

    public bool ClosePanel(string name)
    {
        BasePanel panel = null;
        if (!panelDict.TryGetValue(name, out panel))
        {
            Debug.Log("界面未打开: " + name);
            return false;
        }

        panel.ClosePanel();
        // panelDict.Remove(name);
        return true;
    }

}

public class UIConst
{
    // menu panels

    public const string PackagePanel = "PackagePanel";
}
复制成功

PackagePanel

背包界面主体逻辑

代码块
C#
自动换行
复制代码
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;

public class PackagePanel : BasePanel
{
    private Transform UIMenu;
    private Transform UIMenuWeapon;
    private Transform UIMenuFood;
    private Transform UITabName;
    private Transform UICloseBtn;
    private Transform UICenter;
    private Transform UIScrollView;
    private Transform UIDetailPanel;
    private Transform UILeftBtn;
    private Transform UIRightBtn;
    private Transform UIDeletePanel;
    private Transform UIDeleteBackBtn;
    private Transform UIDeleteInfoText;
    private Transform UIDeleteConfirmBtn;
    private Transform UIBottomMenus;
    private Transform UIDeleteBtn;
    private Transform UIDetailBtn;

    public GameObject PackageUIItemPrefab;

    override protected void Awake()
    {
        base.Awake();
        InitUI();
    }

    private void Start() {
        RefreshUI();
    }

    private void InitUI()
    {
        InitUIName();
        InitClick();
    }

    private void RefreshUI()
    {
        RefreshScroll();
    }


    private void RefreshScroll()
    {
        // 清理滚动容器中原本的物品
        RectTransform scrollContent = UIScrollView.GetComponent<ScrollRect>().content;
        for (int i = 0; i < scrollContent.childCount; i++)
        {
            Destroy(scrollContent.GetChild(i).gameObject);
        }
        foreach (PackageLocalItem localData in GameManager.Instance.GetSortPackageLocalData())
        {
            Transform PackageUIItem = Instantiate(PackageUIItemPrefab.transform, scrollContent) as Transform;
            PackageCell packageCell = PackageUIItem.GetComponent<PackageCell>();
            packageCell.Refresh(localData, this);
        }

    }

    private void InitUIName()
    {
        UIMenu = transform.Find("TopCenter/Menu");
        UIMenuWeapon = transform.Find("TopCenter/Menus/Weapon");
        UIMenuFood = transform.Find("TopCenter/Menus/Food");
        UITabName = transform.Find("LeftTop/TabName");
        UICloseBtn = transform.Find("RightTop/Close");
        UICenter = transform.Find("Center");
        UIScrollView = transform.Find("Center/Scroll View");
        UIDetailPanel = transform.Find("Center/DetailPanel");
        UILeftBtn = transform.Find("Left/Button");
        UIRightBtn = transform.Find("Right/Button");

        UIDeletePanel = transform.Find("Bottom/DeletePanel");
        UIDeleteBackBtn = transform.Find("Bottom/DeletePanel/Back");
        UIDeleteInfoText = transform.Find("Bottom/DeletePanel/InfoText");
        UIDeleteConfirmBtn = transform.Find("Bottom/DeletePanel/ConfirmBtn");
        UIBottomMenus = transform.Find("Bottom/BottomMenus");
        UIDeleteBtn = transform.Find("Bottom/BottomMenus/DeleteBtn");
        UIDetailBtn = transform.Find("Bottom/BottomMenus/DetailBtn");

        UIDeletePanel.gameObject.SetActive(false);
        UIBottomMenus.gameObject.SetActive(true);
    }

    private void InitClick()
    {
        UIMenuWeapon.GetComponent<Button>().onClick.AddListener(OnClickWeapon);
        UIMenuFood.GetComponent<Button>().onClick.AddListener(OnClickFood);
        UICloseBtn.GetComponent<Button>().onClick.AddListener(OnClickClose);
        UILeftBtn.GetComponent<Button>().onClick.AddListener(OnClickLeft);
        UIRightBtn.GetComponent<Button>().onClick.AddListener(OnClickRight);

        UIDeleteBackBtn.GetComponent<Button>().onClick.AddListener(OnDeleteBack);
        UIDeleteConfirmBtn.GetComponent<Button>().onClick.AddListener(OnDeleteConfirm);
        UIDeleteBtn.GetComponent<Button>().onClick.AddListener(OnDelete);
        UIDetailBtn.GetComponent<Button>().onClick.AddListener(OnDetail);

    }
    private void OnClickWeapon()
    {
        print(">>>>> OnClickWeapon");
    }

    private void OnClickFood()
    {
        print(">>>>> OnClickFood");
    }

    private void OnClickClose()
    {
        print(">>>>> OnClickClose");
        ClosePanel();
        // UIManager.Instance.ClosePanel(UIConst.PackagePanel);
    }

    private void OnClickLeft()
    {
        print(">>>>> OnClickLeft");
    }

    private void OnClickRight()
    {
        print(">>>>> OnClickRight");
    }

    private void OnDeleteBack()
    {
        print(">>>>> onDeleteBack");
    }

    private void OnDeleteConfirm()
    {
        print(">>>>> OnDeleteConfirm");
    }

    private void OnDelete()
    {
        print(">>>>> OnDelete");
    }

    private void OnDetail()
    {
        print(">>>>> OnDetail");
    }
}
复制成功

PackageCell

背包中单个物品的代码逻辑

代码块
C#
自动换行
复制代码
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;

public class PackageCell : MonoBehaviour
{
    private Transform UIIcon;
    private Transform UIHead;
    private Transform UINew;
    private Transform UISelect;
    private Transform UILevel;
    private Transform UIStars;
    private Transform UIDeleteSelect;

    private PackageLocalItem packageLocalData;
    private PackageTableItem packageTableItem;
    private PackagePanel uiParent;

    private void Awake()
    {
        InitUIName();
    }
    private void InitUIName()
    {
        UIIcon = transform.Find("Top/Icon");
        UIHead = transform.Find("Top/Head");
        UINew = transform.Find("Top/New");
        UILevel = transform.Find("Bottom/LevelText");
        UIStars = transform.Find("Bottom/Stars");
        UISelect = transform.Find("Select");
        UIDeleteSelect = transform.Find("DeleteSelect");

        UIDeleteSelect.gameObject.SetActive(false);
    }

    public void Refresh(PackageLocalItem packageLocalData, PackagePanel uiParent)
    {
        // 数据初始化
        this.packageLocalData = packageLocalData;
        this.packageTableItem = GameManager.Instance.GetPackageItemById(packageLocalData.id);
        this.uiParent = uiParent;
        // 等级信息
        UILevel.GetComponent<Text>().text = "Lv." + this.packageLocalData.level.ToString();
        // 是否是新获得？
        UINew.gameObject.SetActive(this.packageLocalData.isNew);
        // 物品的图片
        Texture2D t = (Texture2D)Resources.Load(this.packageTableItem.imagePath);
        Sprite temp = Sprite.Create(t, new Rect(0, 0, t.width, t.height), new Vector2(0, 0));
        UIIcon.GetComponent<Image>().sprite = temp;
        // 刷新星级
        RefreshStars();
    }
    public void RefreshStars()
    {
        for (int i = 0; i < UIStars.childCount; i++)
        {
            Transform star = UIStars.GetChild(i);
            if (this.packageTableItem.star > i)
            {
                star.gameObject.SetActive(true);
            }
            else
            {
                star.gameObject.SetActive(false);
            }
        }
    }

}
复制成功

工程项目等整个课程完结会发出来，前三节课的工程项目放在知识星球里啦，欢迎加入。

游戏 独立游戏 游戏教程 单击游戏 Unity 背包系统 原神
本文为我原创，未经授权禁止转载
cv27836745
