一、数据说明

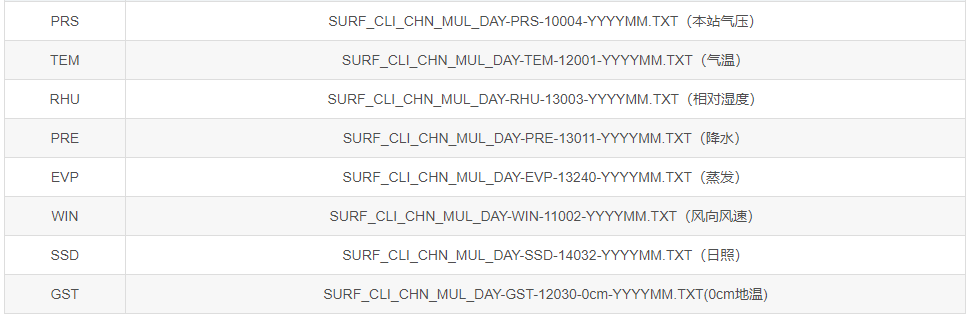

"中国地面气候资料日值数据集（V3.0）”包含了中国各个基准、基本气象站1951年1月以来本站气压、气温、降水量、蒸发量、相对湿度、风向风速、日照时数和0cm地温要素的日值数据（https://blog.csdn.net/m0_66875796/article/details/127408964?）
示例：53463PRE

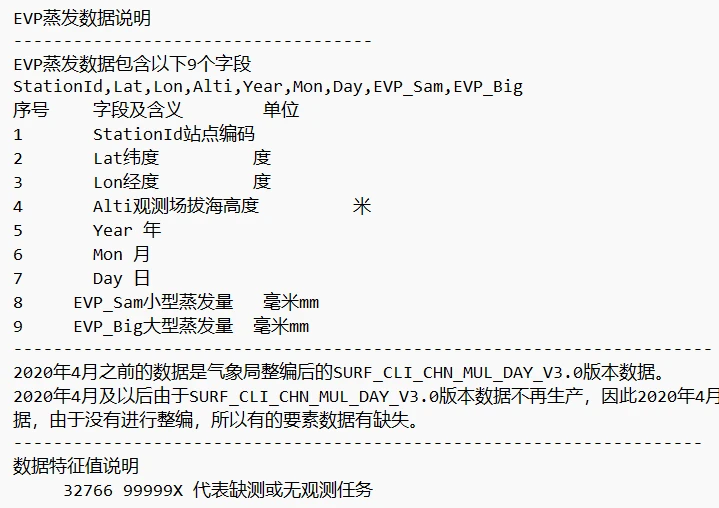

1.气象要素EVP蒸发数据说明

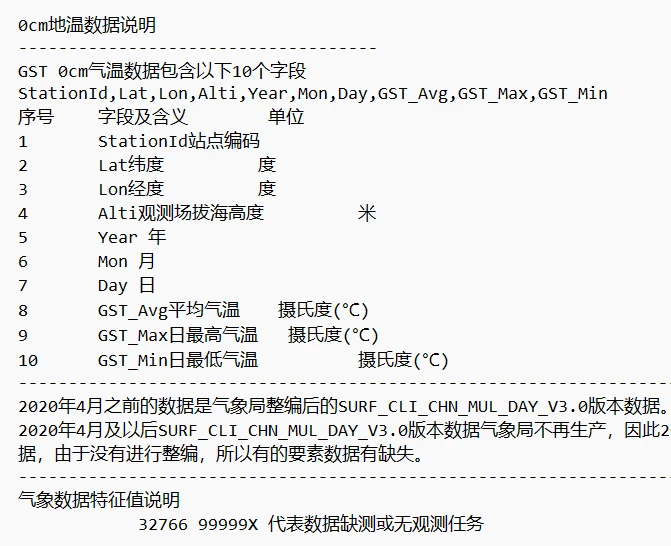

2.气象要素GST地温数据说明

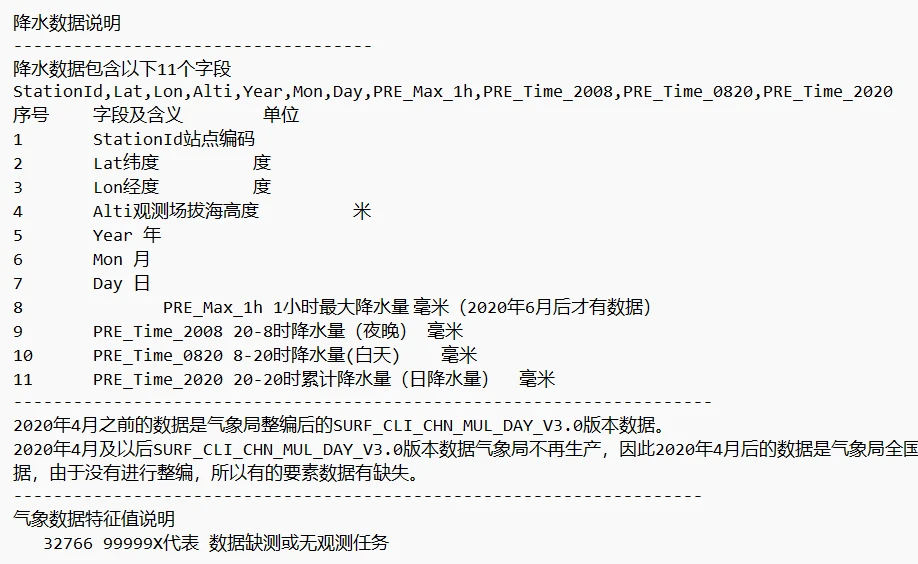

3.气象要素PRE降水数据说明

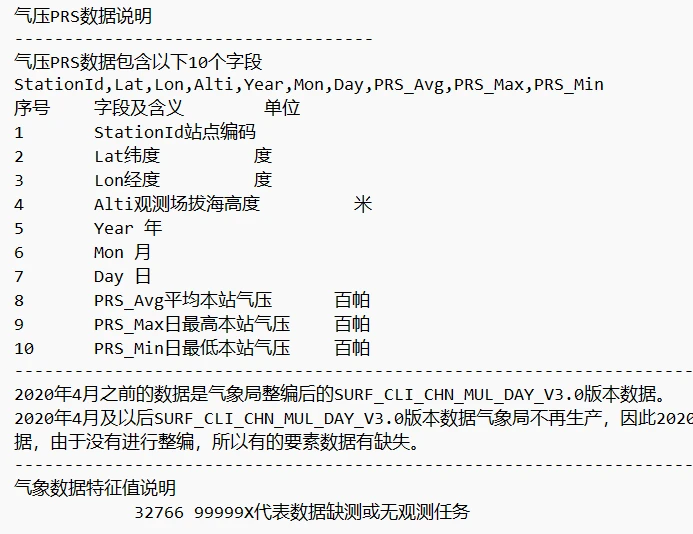

4.气象要素PRS气压数据说明

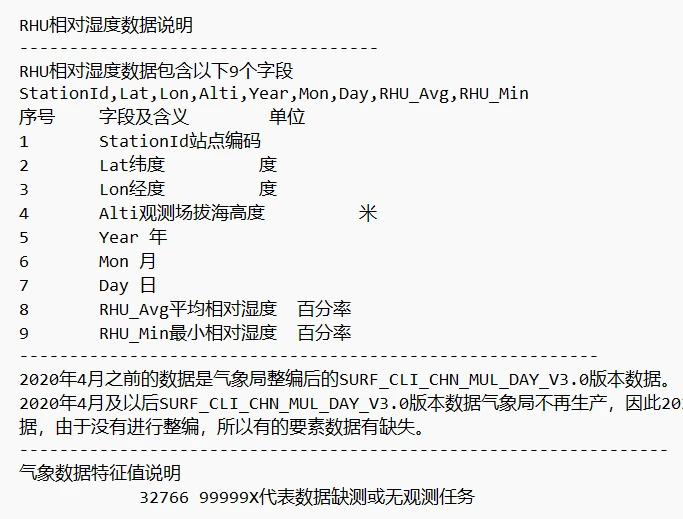

5.气象要素RHU相对湿度数据说明

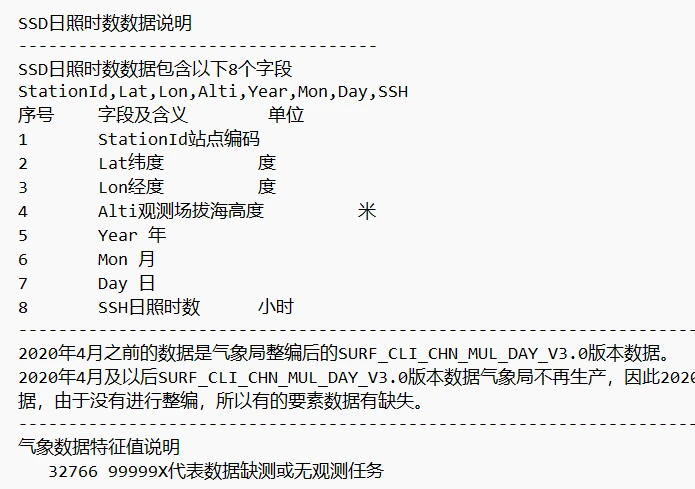

6.气象要素SSD日照时数数据说明

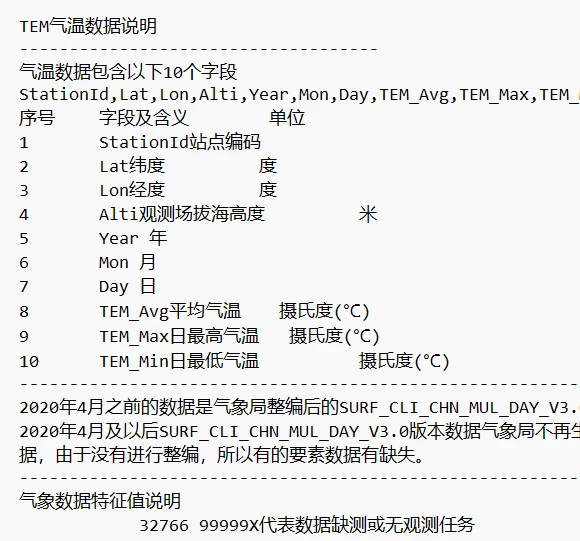

7.气象要素TEM气温数据说明

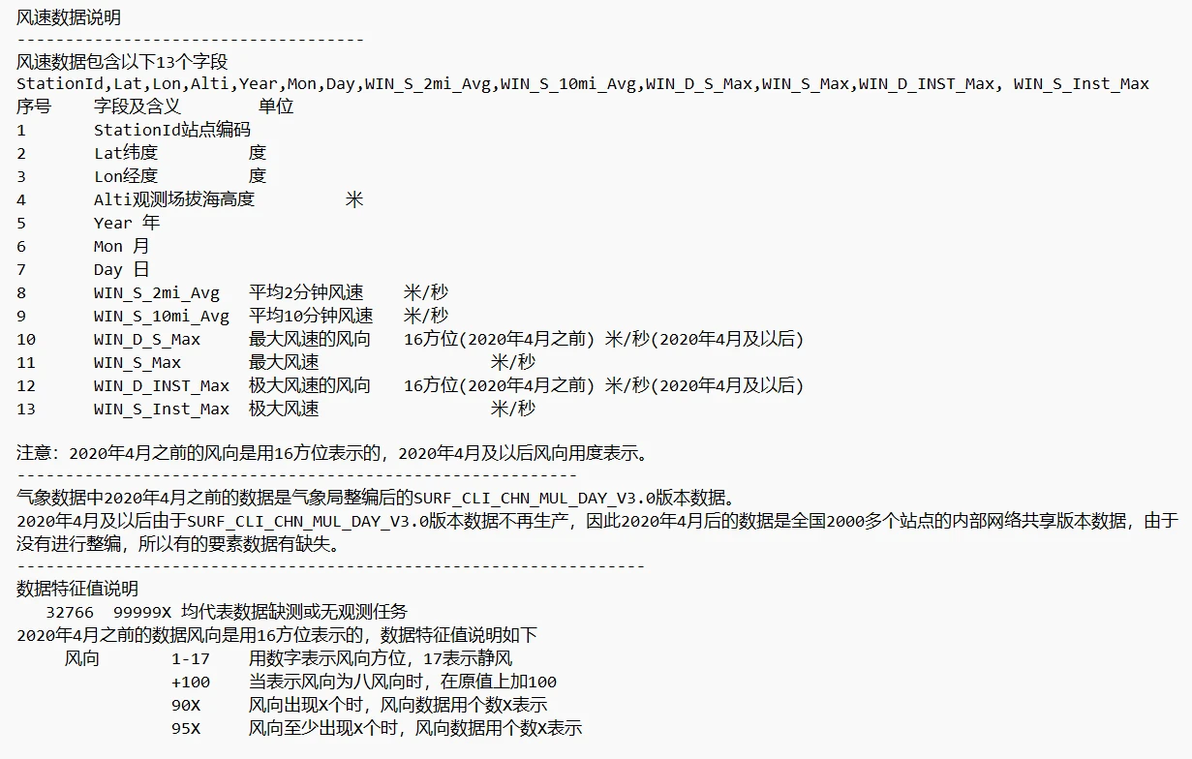

8.气象要素WIN风速数据说明
二、数据处理（亲测好用的代码合集）
1.利用Python处理逐日气象数据集
原文1：http://gaohr.win/site/blogs/2019/2019-08-20-china-daily-ground-climate-data-extraction.html#
原文2：https://blog.csdn.net/weixin_44566896/article/details/104970082
代码块
JavaScript
自动换行
复制代码
# -*- coding: utf-8 -*-
import os
import math
import numpy
import time
import datetime
# 创建类
class ClimateData:
'''
读取气象站点数据，格式化输出
（下载的原始逐日气象数据）
'''
def __init__(self, dir, dir_out, sid, fields, period, days):
self.dataDir = dir
self.dataDir_out = dir_out
self.sid = sid
self.period = period
self.days = days
self.fieldName = fields
# code：数据类型，ind：数据索引号，frc：真值拉伸系数，ev:异常值阈值，详见气象数据说明文档
self.fieldInfo = {
"TEM": {"code": "12001", "ind": 7, "frc": 0.1, "ev": 30000},
"TMX": {"code": "12001", "ind": 8, "frc": 0.1, "ev": 30000},
"TMN": {"code": "12001", "ind": 9, "frc": 0.1, "ev": 30000},
"PRE": {"code": "13011", "ind": 9, "frc": 0.1, "ev": 30000}, # 7:8-20 8:20-8 9:20-20
"EVP": {"code": "13240", "ind": 7, "frc": 0.1, "ev": 1000},
"RHU": {"code": "13003", "ind": 7, "frc": 1.0, "ev": 300},
"WIN": {"code": "11002", "ind": 7, "frc": 0.1, "ev": 1000},
"SSD": {"code": "14032", "ind": 7, "frc": 0.1, "ev": 99},
"GST": {"code": "12030-0cm", "ind": 7, "frc": 0.1, "ev": 10000},
"PRS": {"code": "10004", "ind": 7, "frc": 0.1, "ev": 20000}
}
# 全部数据
self.data = {}
# 数据日期
self.data_date = {}
# 存储逐年数据
self.data_y = {}
# 待提取日期数据
self.data_d = {}
# 获得日期数组
self.GetDateArr()
for i in self.fieldName:
self.data[i] = []
self.data_date[i] = []
for t in self.years:
self.data_y[t] = {}
for i in self.fieldName:
self.data_y[t][i] = []
for d in self.days:
self.data_d[d] = {}
for i in self.fieldName:
self.data_d[d][i] = 0
def GetDateArr(self):
'''
根据起始日期，获得逐月日期
:return:
'''
self.date = []
self.years = []
startDT_y = int(self.period[0][0:4])
startDT_m = int(self.period[0][4:6])
endDT_y = int(self.period[1][0:4])
endDT_m = int(self.period[1][4:6])
if startDT_y == endDT_y:
self.years.append(startDT_y)
for j in range(startDT_m, endDT_m + 1):
if j > 9:
self.date.append(str(startDT_y) + str(j))
else:
self.date.append(str(startDT_y) + "0" + str(j))
else:
for i in range(startDT_y, endDT_y + 1):
self.years.append(i)
if i == startDT_y:
for j in range(startDT_m, 13):
if j > 9:
self.date.append(str(i) + str(j))
else:
self.date.append(str(i) + "0" + str(j))
elif i < endDT_y:
for j in range(1, 13):
if j > 9:
self.date.append(str(i) + str(j))
else:
self.date.append(str(i) + "0" + str(j))
else:
for j in range(1, endDT_m + 1):
if j > 9:
self.date.append(str(i) + str(j))
else:
self.date.append(str(i) + "0" + str(j))
def ExtractData(self, sr=0):
'''
Extract data
:param sr: start row numbers, default is 0
:return:
'''
print("Data extracting...")
# Get date arr
s_time = time.clock()
# 遍历每个数据类型
for fn in self.fieldName:
# 遍历逐月日期
for dt in self.date:
print(fn, dt)
yr = int(dt[0:4])
# 拼接字符串，组成数据文件路径
field = fn
if fn == "TMN" or fn == "TMX":
field = "TEM"
fileName = self.dataDir + os.sep + "SURF_CLI_CHN_MUL_DAY-" + \
field + "-" + self.fieldInfo[fn]['code'] + "-" + dt + ".TXT"
if not os.path.isfile(fileName):
raise Exception("Can not find %s" % fileName)
else:
txtFile = open(fileName, 'r')
linesList = txtFile.read().split('\n')
iffind = False
hasdata = True
# 逐行遍历数据
for i in range(sr, len(linesList)):
if len(linesList[i]) > 0:
# 将每行数据拆成数组，按照索引提取数据
lineArr = SplitStr(linesList[i], spliters=' ')
if int(lineArr[0]) == self.sid:
iffind = True
# 将数据存储至数组
od = float(lineArr[self.fieldInfo[fn]['ind']])
# PRS 数值处理
if fn == "PRS":
if od >= self.fieldInfo[fn]['ev']:
od = -100
# PRE 数值处理
elif fn == "PRE":
if od == 32766:
od = -100
elif od == 32700:
od = 0
elif od > 99999:
od = 0
else:
od = od - int(od / 1000) * 1000
else:
# 异常值处理,异常值用-100代替
if od >= float(self.fieldInfo[fn]['ev']) / float(self.fieldInfo[fn]['frc']):
# od = float(lineArr[int(self.fieldInfo[fn]['ind']) - 1])
od = -100.
# 将处理结果添加至数据字典
if od != -100:
self.data[fn].append(od * float(self.fieldInfo[fn]['frc']))
self.data_y[yr][fn].append(od * float(self.fieldInfo[fn]['frc']))
else:
self.data[fn].append(od)
self.data_y[yr][fn].append(od)
# 保存对应的日期
data_date_str = lineArr[4] + "-" + lineArr[5] + "-" + lineArr[6]
data_date_date = datetime.datetime.strptime(data_date_str, "%Y-%m-%d")
data_date_fmt = datetime.datetime.strftime(data_date_date, "%Y-%m-%d")
self.data_date[fn].append(data_date_fmt)
# 遍历完所设置站点的日期后结束循环
if int(lineArr[0]) != self.sid and iffind:
break
# 如果未匹配到数据，做标记
if i == len(linesList) - 27 and not iffind:
hasdata = False
break
# 如果未匹配数据，用-9999填充
if not hasdata:
firstrow = SplitStr(linesList[0], spliters=' ')
s0 = firstrow[0]
for k in range(len(linesList)):
lineArr_s0 = SplitStr(linesList[k], spliters=' ')
if int(lineArr_s0[0]) == int(s0):
# 将-9999添加至数据字典
self.data[fn].append(-9999)
self.data_y[yr][fn].append(-9999)
# 保存对应的日期
data_date_str = lineArr_s0[4] + "-" + lineArr_s0[5] + "-" + lineArr_s0[6]
data_date_date = datetime.datetime.strptime(data_date_str, "%Y-%m-%d")
data_date_fmt = datetime.datetime.strftime(data_date_date, "%Y-%m-%d")
self.data_date[fn].append(data_date_fmt)
else:
break
e_time = time.clock()
print("\t<Run time: %.3f s>" % (e_time - s_time))
def SaveData(self, period_days, avg=True, d=True):
'''
将提取的数据存储到文件
:param avg: 输出逐年平均数据
:return:
'''
print("Save as file...", end='')
outStr = ""
outStr += "date,"
# 添加字段
for s in range(len(self.fieldName)):
if s != len(self.fieldName) - 1:
outStr += self.fieldName[s] + ","
else:
outStr += self.fieldName[s] + "\n"
# 先遍历天数，再遍历类型，逐日添加数据
for k in range(len(self.data[self.fieldName[0]])):
# outStr += period_days[k] + ","
for s in range(len(self.fieldName)):
if s == 0:
outStr += str(self.data_date[self.fieldName[s]][k]) + ","
if s != len(self.fieldName) - 1:
outStr += str(self.data[self.fieldName[s]][k]) + ","
else:
outStr += str(self.data[self.fieldName[s]][k]) + "\n"
# Save
createForld(self.dataDir_out)
outputFile = self.dataDir_out + os.sep + str(self.sid) + "_data_" + self.period[0] + "_" + self.period[1] + ".csv"
DeleteFile(outputFile)
WriteLog(outputFile, outStr, MODE='append')
# 输出逐年平均
if avg:
outStr = ""
# 添加字段
outStr += "DATE,"
for s in range(len(self.fieldName)):
if s != len(self.fieldName) - 1:
outStr += self.fieldName[s] + ","
else:
outStr += self.fieldName[s] + "\n"
# 先遍历年份，再遍历类型，逐日添加数据
for yr in self.years:
outStr += str(yr) + ","
for s in range(len(self.fieldName)):
# 获取平均值
if self.fieldName[s] == "PRE":
# 降水求累加值
data_avg = numpy.sum(self.data_y[yr][self.fieldName[s]])
else:
data_avg = numpy.average(self.data_y[yr][self.fieldName[s]])
if s != len(self.fieldName) - 1:
outStr += str(data_avg) + ","
else:
outStr += str(data_avg) + "\n"
outputFile_avg = self.dataDir_out + os.sep + str(self.sid) + "_data_" + self.period[0] + "_" + self.period[1] + "_avg.csv"
DeleteFile(outputFile_avg)
WriteLog(outputFile_avg, outStr, MODE='append')
# 输出日数据
if d:
outStr = ""
# 添加字段
outStr += "DATE,"
for s in range(len(self.fieldName)):
if s != len(self.fieldName) - 1:
outStr += self.fieldName[s] + ","
else:
outStr += self.fieldName[s] + "\n"
# 先遍历年份，再遍历类型，逐日添加数据
for d in self.days:
outStr += str(d) + ","
for s in range(len(self.fieldName)):
data_d = self.data_d[d][self.fieldName[s]]
if s != len(self.fieldName) - 1:
outStr += str(data_d) + ","
else:
outStr += str(data_d) + "\n"
outputFile_d = self.dataDir_out + os.sep + "data_" + self.period[0] + "_" + self.period[1] + "_days.csv"
DeleteFile(outputFile_d)
WriteLog(outputFile_d, outStr, MODE='append')
print("Completed!")
## DateTime
def GetDateArr_days(timeStart, timeEnd):
TIME_Start = datetime.datetime.strptime(timeStart, "%Y-%m-%d")
TIME_End = datetime.datetime.strptime(timeEnd, "%Y-%m-%d")
dateArr = getDayByDay(TIME_Start, TIME_End)
# print dateArr
return dateArr
def GetDateArr_strdays(timeStart, timeEnd, fmt="%Y-%m-%d"):
days = GetDateArr_days(timeStart, timeEnd)
dateArr_str = []
for d in days:
dateArr_str.append(datetime.datetime.strftime(d, fmt))
return dateArr_str
def getDayByDay(timeStart, timeEnd):
oneday = datetime.timedelta(days=1)
timeArr = [timeStart]
while timeArr[len(timeArr) - 1] < timeEnd:
tempday = timeArr[len(timeArr) - 1] + oneday
timeArr.append(tempday)
return timeArr
# Remove space(' ') and indent('\t') at the begin and end of the string
def StripStr(str):
oldStr = ''
newStr = str
while oldStr != newStr:
oldStr = newStr
newStr = oldStr.strip('\t')
newStr = newStr.strip(' ')
return newStr
# Split string by spliter space(' ') and indent('\t') as default
def SplitStr(str, spliters=None):
# spliters = [' ', '\t']
# spliters = []
# if spliter is not None:
# spliters.append(spliter)
if spliters is None:
spliters = [' ', '\t']
destStrs = []
srcStrs = [str]
while True:
oldDestStrs = srcStrs[:]
for s in spliters:
for srcS in srcStrs:
tempStrs = srcS.split(s)
for tempS in tempStrs:
tempS = StripStr(tempS)
if tempS != '':
destStrs.append(tempS)
srcStrs = destStrs[:]
destStrs = []
if oldDestStrs == srcStrs:
destStrs = srcStrs[:]
break
return destStrs
# Write file
def WriteLog(logfile, contentlist, MODE='replace'):
if os.path.exists(logfile):
if MODE == 'replace':
os.remove(logfile)
logStatus = open(logfile, 'w')
else:
logStatus = open(logfile, 'a')
else:
logStatus = open(logfile, 'w')
if isinstance(contentlist, list) or isinstance(contentlist,tuple):
for content in contentlist:
logStatus.write("%s%s" % (content, '\r\n'))
else:
logStatus.write(contentlist)
logStatus.flush()
logStatus.close()
# Create forld
def createForld(forldPath):
if not os.path.isdir(forldPath):
os.makedirs(forldPath)
# Delete file
def DeleteFile(fp):
if os.path.exists(fp):
os.remove(fp)
if __name__ == "__main__":
# 定义文件路径
dataDir =r"G:\05小论文\1951-2020气象数据\按年份\1951_2020"
dataDir_out =r"G:\05小论文\1951-2020气象数据\climate1951-2020"
sidArr = ["56046","56033","54826","54827"] # 站号列表
fields = ["TEM", "TMN", "TMX", "PRE", "RHU", "WIN", "PRS", "SSD"] # 可选的提取变量列表
START = "1951-01-01" # 起始日期
END = "2020-12-31" # 终止日期
period = [START.split('-')[0] + START.split('-')[1], END.split('-')[0] + END.split('-')[1]]
period_days = GetDateArr_strdays(START, END)
days = []
# 逐站点提取数据
for sid in sidArr:
print(sid)
# 计算起始搜索行数，提高提取速度
sr = sidArr.index(sid) * 28
c = ClimateData(dataDir, dataDir_out, int(sid), fields, period, days)
c.ExtractData(sr=sr)
c.SaveData(period_days, avg=False, d=False)复制成功
需要提取的降水、气温、日照时数等.txt文件需要存放在同一文件夹中，处理结果如下图，可以同时提取多个变量，数据以站点ID为文件名独立存储
示例：53463站点
2.利用R语言处理逐日气象数据集
原文1：https://blog.csdn.net/weixin_44318841/article/details/105081014
处理结果如下图，可以提取部分站点or全部站点的某一变量，并将数据以站点ID为文件名独立存储
示例：53463站点气温
原文2：https://blog.csdn.net/weixin_43314520/article/details/125204554?

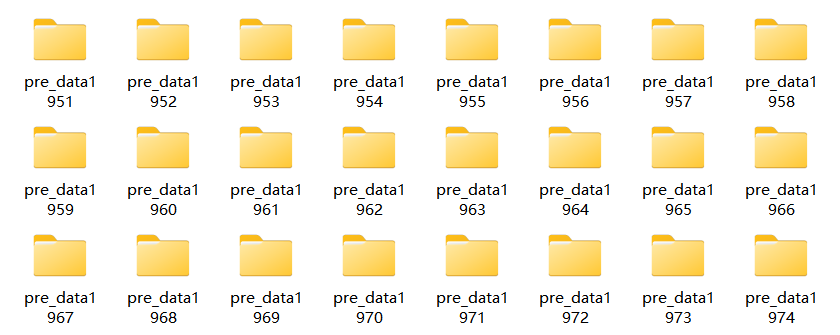

需提前将所有年份单独放一个文件夹，即一个年份一个文件夹，此外文章还提供了处理风速的代码

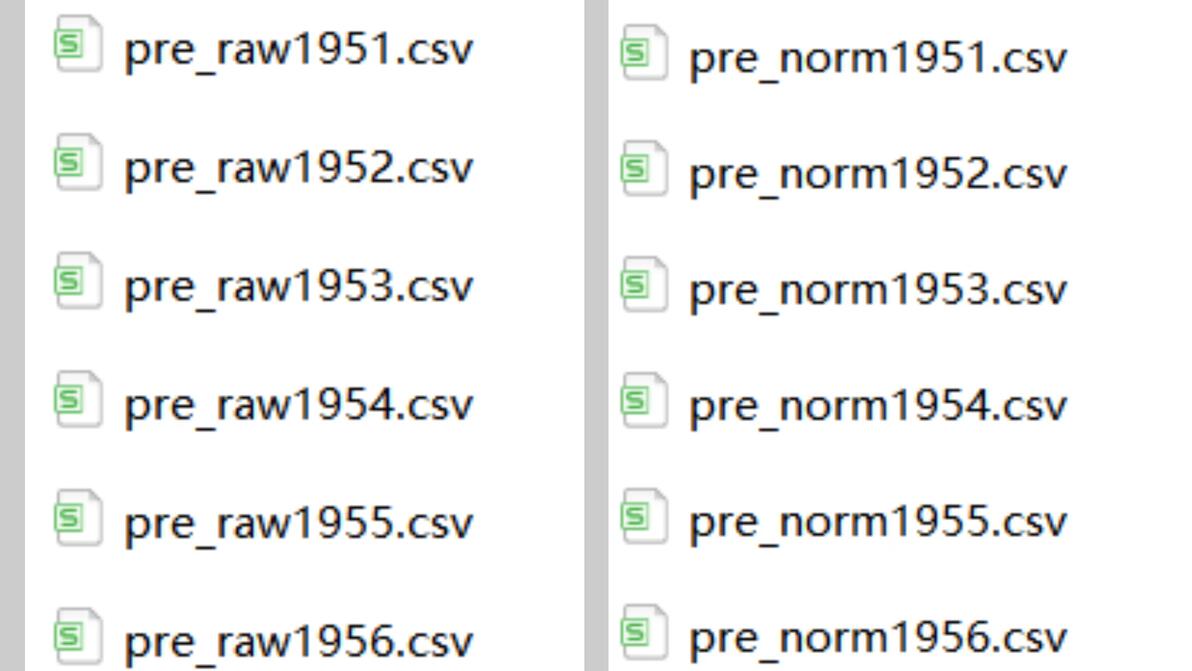

处理结果如下图，按年份提取所有站点降水数据
示例：53463站点日降水
3.利用Matlab处理逐日气象数据集
原文：https://blog.csdn.net/CatfishYalu/article/details/121776459?
这是去年11-12月整理一半突然阳了没继续完成的记录，身体不舒服难受了一个月，后来恢复了也忘记这个了，最近在草稿箱看到，也不继续完善了，因为这部分数据我也已经处理完毕，既然已经整理了，就发出来，记性不好，万一以后要用还能看看.....感谢写出这些代码大佬！！！
cv26413671
分享至
投诉或建议
