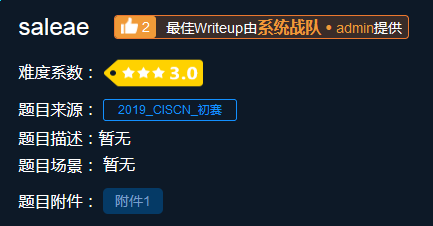

题目：

题目来源： 2019_CISCN_初赛

WP:

百度搜索文件名和后缀名，可以发现是逻辑分析仪文件。

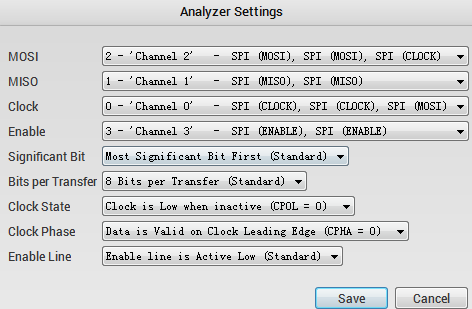

logic打开，用SPI分析

导出得到flag：

代码块
JavaScript
自动换行
复制代码
Time [s],Packet ID,MOSI,MISO
0.378724400000000,,f,'0'
0.378730100000000,,l,'0'
0.378735800000000,,a,'0'
0.378741500000000,,g,'0'
0.378747300000000,,{,'0'
0.378753000000000,,1,'0'
0.378758700000000,,2,'0'
0.378764500000000,,0,'0'
0.378770200000000,,7,'0'
0.378775900000000,,1,'0'
0.378781700000000,,3,'0'
0.378787400000000,,9,'0'
0.378793100000000,,7,'0'
0.378798900000000,,-,'0'
0.378804600000000,,1,'0'
0.378810300000000,,9,'0'
0.378816100000000,,d,'0'
0.378821800000000,,1,'0'
0.378827500000000,,-,'0'
0.378833300000000,,4,'0'
0.378839000000000,,8,'0'
0.378844700000000,,e,'0'
0.378850400000000,,6,'0'
0.378856200000000,,-,'0'
0.378861900000000,,b,'0'
0.378867600000000,,e,'0'
0.378873400000000,,8,'0'
0.378879100000000,,c,'0'
0.378884800000000,,-,'0'
0.378890500000000,,7,'0'
0.378896300000000,,8,'0'
0.378902000000000,,4,'0'
0.378907700000000,,b,'0'
0.378913500000000,,8,'0'
0.378919200000000,,9,'0'
0.378924900000000,,a,'0'
0.378930700000000,,9,'0'
0.378936400000000,,5,'0'
0.378942100000000,,e,'0'
0.378947900000000,,0,'0'
0.378953600000000,,7,'0'
0.378959300000000,,},'0'
复制成功

flag{12071397-19d1-48e6-be8c-784b89a95e07}
