达芬奇内置的LUTs有一套Sony为自家摄像机开发的四个 SLog3 LUTs,并且Sony官方于2018年也推出了一款优化版 SLog3 LUT,很多朋友不知道这五个LUTs有什么区别,该怎么用。

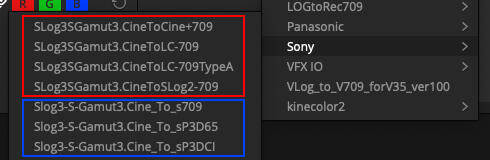

红色部分为达芬奇自带,蓝色部分为2018新款

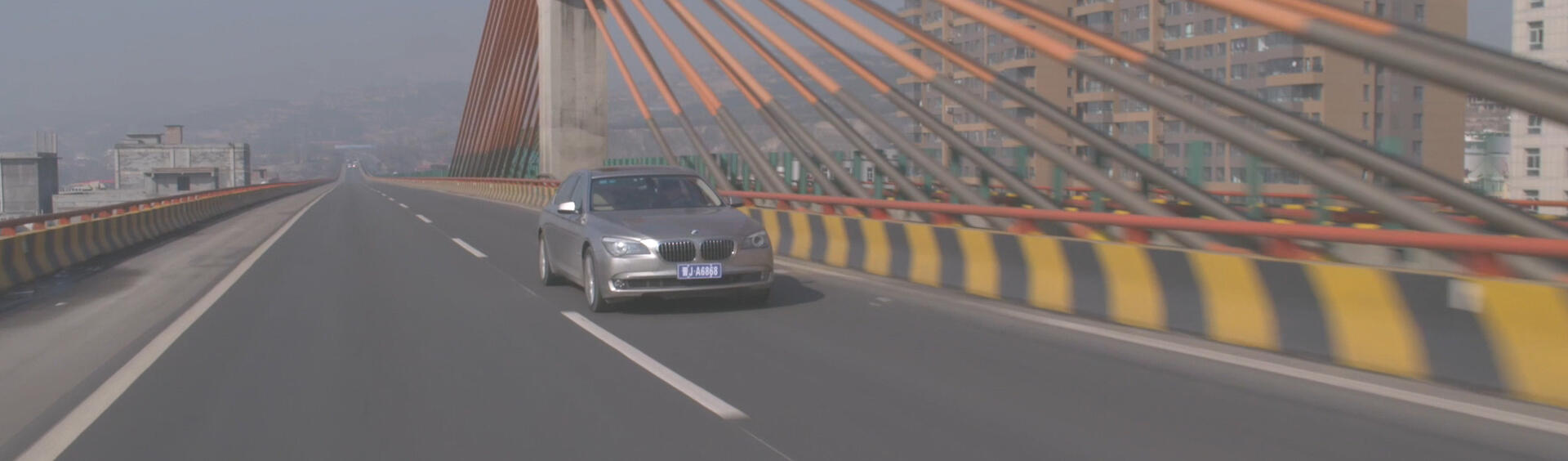

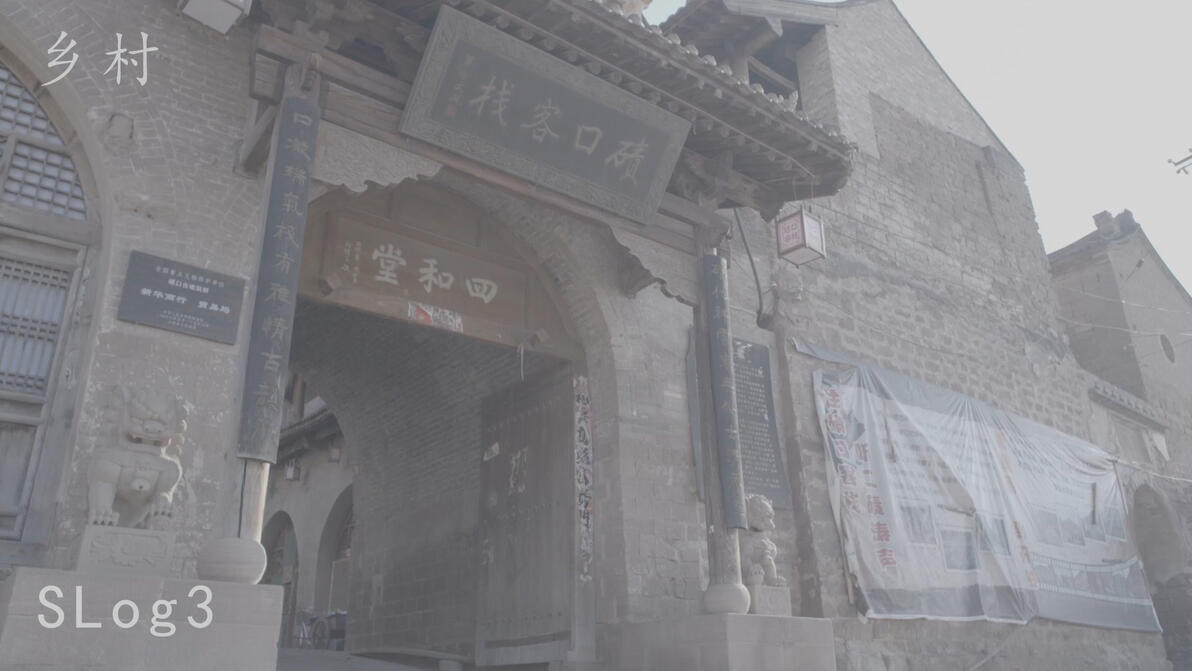

今天墨鱼以手头 SLog3 素材为例,引用官方资料和中文说明,并分享自己的经验与理解,希望能对朋友们有所帮助。首先,我们找三张静帧作为原始参考:

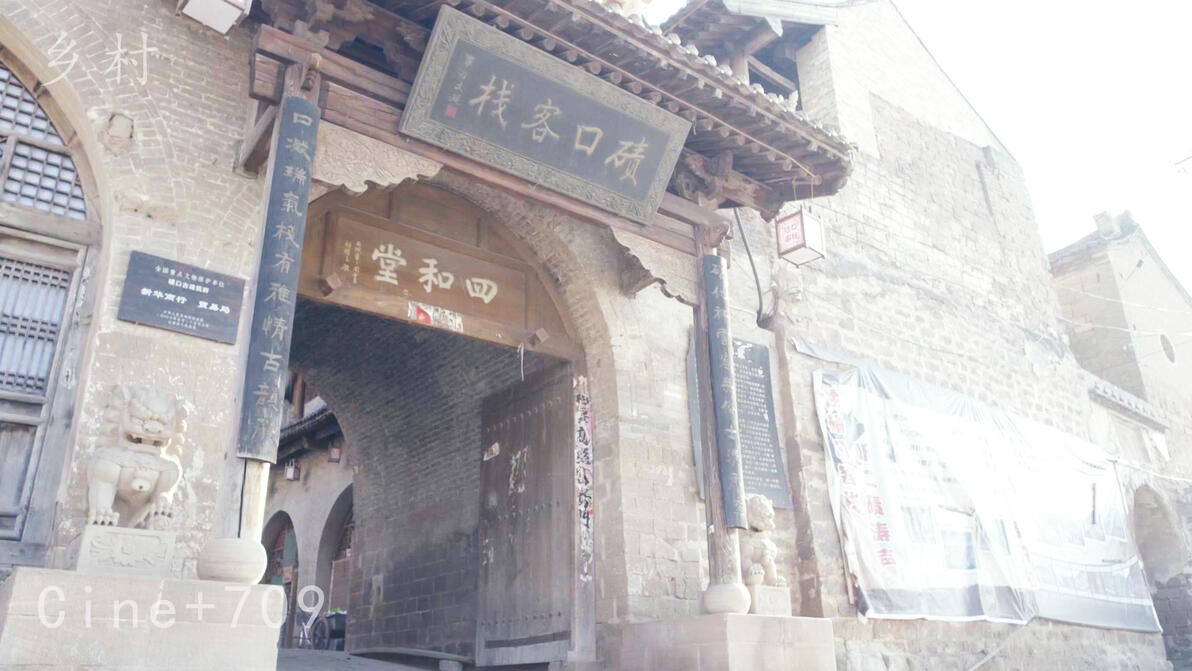

SLog3SGamut3.CineToCine+709
此LUT适用于在电视平台上模拟胶片色彩。它再现了使用彩色电影负片拍摄,再用正片冲洗出来的色彩效果。冲洗用的正片本身比负片有更大的反差,所以最终对比反差会很大。
实际上压缩了高光和阴影,墨鱼建议慎用。



官方英文资料:
This reproduces the look of shooting on color negative film and printing it onto film print stock. Print stock is inherently more contrasty than negative stock so this is an aggressive look that really crushes highlights and shadows.

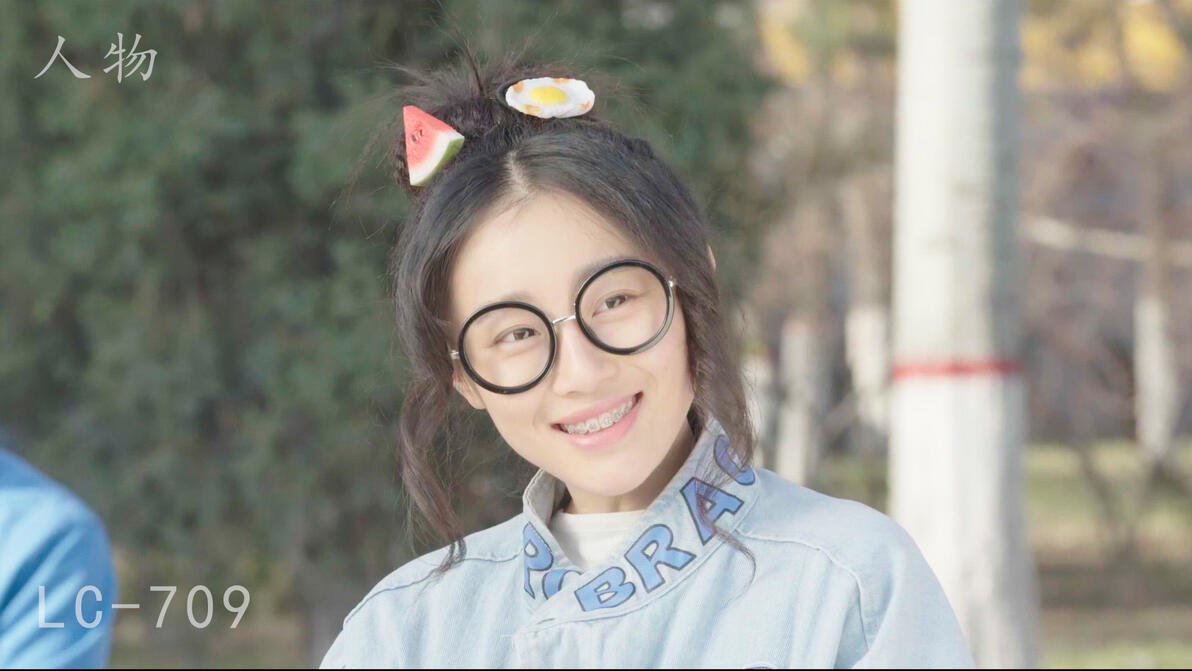

SLog3SGamut3.CineToLC-709
此LUT效果是低反差偏正常影调,高光区和阴影区都被轻微压缩,以便后期进行扩展调色。(该LUT针对黑电平有2%细微地提升,在调色中给予阴影细节更多地调整空间)
此LUT还原了较好的肤色,整体色彩是低饱和度低对比度的709色域,可为后期调色提供更多空间。这是一个中规中矩的Log还原709 LUT。不过比起此LUT,墨鱼更常用的是下一条介绍的 TypeA,也就是此LUT的改良版。



官方资料:
This is a low contrast and very pretty translation of SGamut3 to Rec 709 color space. It has a slight 2% lift to the blacks to allow full access to shadow detail in the grade.

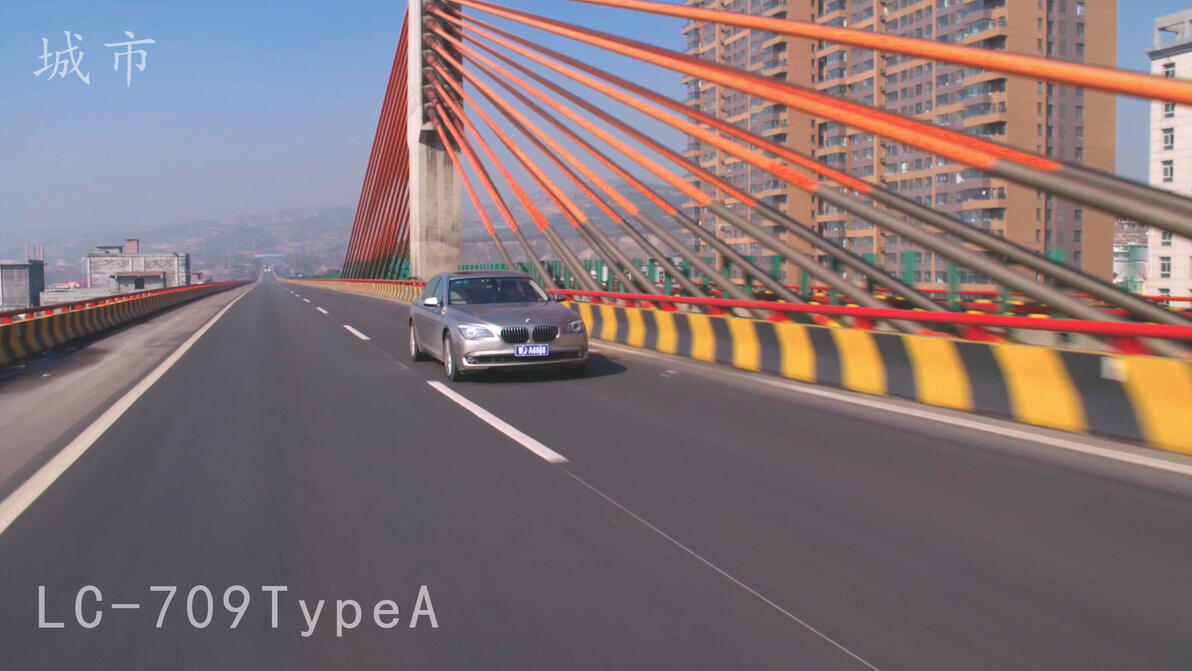

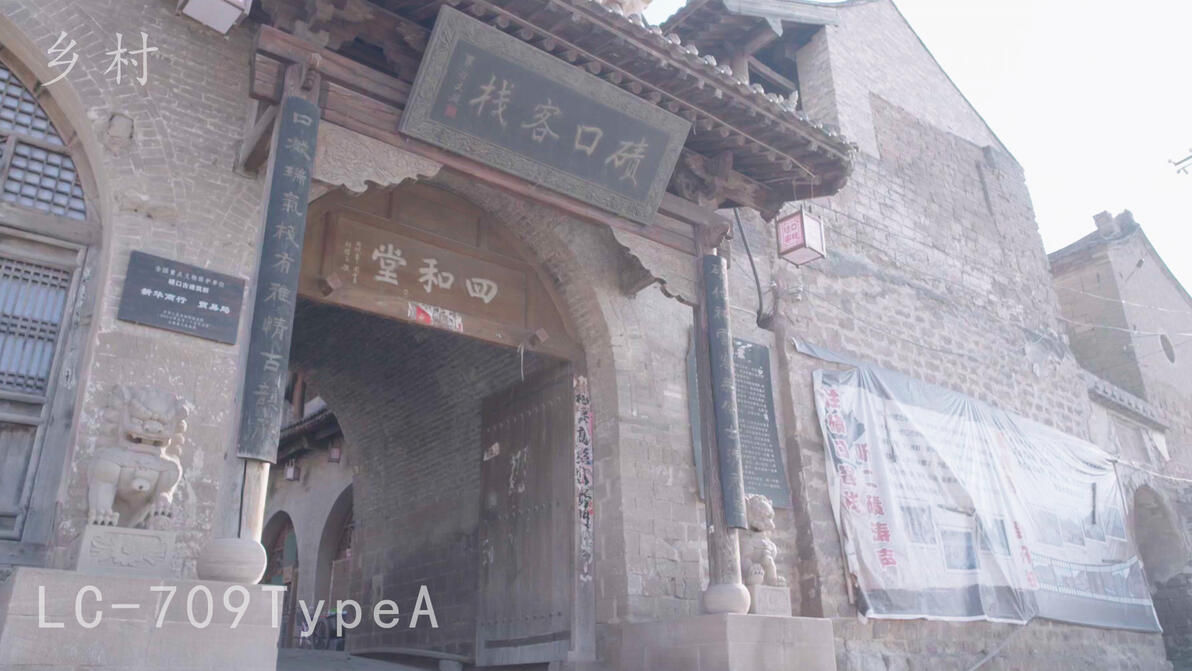

SLog3SGamut3.CineToLC-709TypeA
此LUT是 LC-709 的电影版,它模拟了Sony HDW-F900 和 Alexa 的风格,颜色上有轻微的电影质感。它的中间调对比度和 LC-709 相同,但肤色段和 LC-709 有轻微不同。画面的黑点进行了一定程度的偏移以适配常规摄影机(黑电平提升5%,红色与艾丽莎略微不同)。
墨鱼最常用的就是这款 。说它是 LC-709 的电影版我个人觉得有些夸张。仔细对比两者,差别其实不大,我个人定义它为 LC-709 的改良版,多了一些细节和质感上的差别。



官方资料:
This is the “filmic” version of the LC-709 look. Blacks are lifted to 5%, red is slightly different to match Alexa (I wasn’t told how they are different, but if I had to guess I’d say Alexa’s reds are a touch on the cool side and less saturated), the image is less saturated overall and the brighter highlights become the less saturated they are.

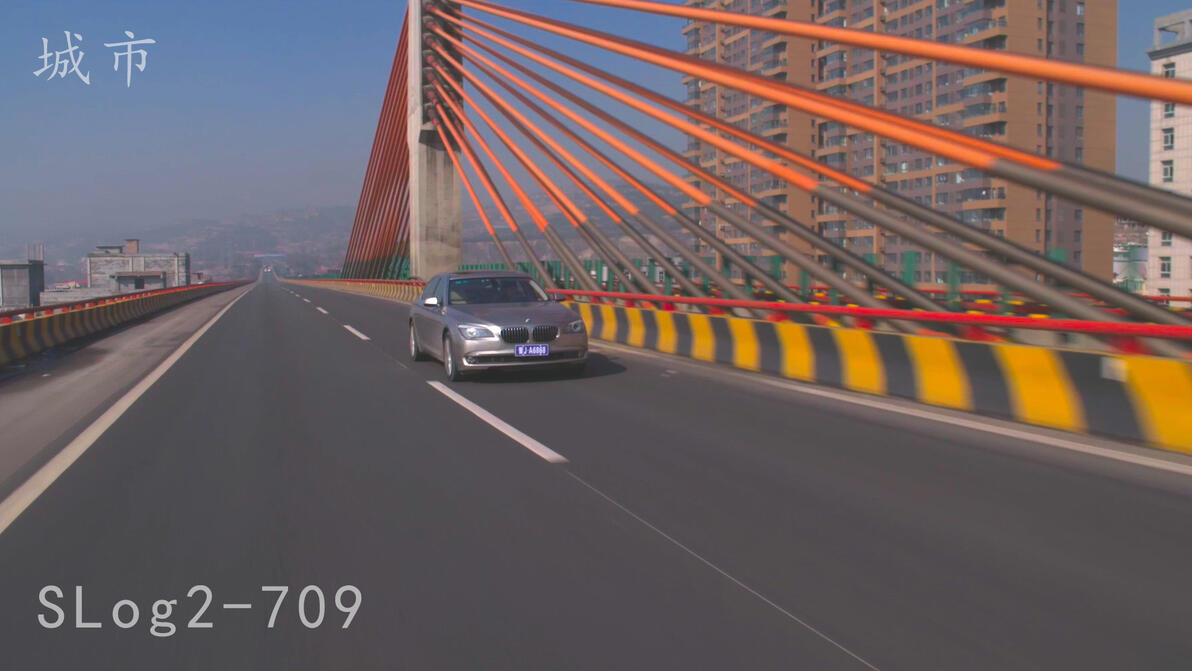

SLog3SGamut3.CineToSLog2-709
此LUT色域比709稍宽一点,并将gamma曲线从SLog3转换到SLog2。(SLog2曲线强调高光,而SLog3展示更多的阴影和中间亮度。)
此LUT适合对S-Log2曲线有经验的调色师们。除了Type A,我第二常用的便是这款。SLog 3曲线强调暗部与中间调,在处理偏亮素材时会压缩掉高光,而SLog-2曲线会保护高光,所以此LUT在过曝素材上有不错的表现。



官方资料:
Converts the image to Rec 709 color space from SGamut3.cine and translates the SLog3 gamma curve to SLog2. Presumably this is for those who prefer to grade using the SLog2 gamma curve but want SGamut3.cine color. (The SLog2 gamma curve emphasizes highlights while SLog3 is a bit more neutral and/or opens up the shadows. More on that in a coming article.)
SLog3SGamut3.Cine_To_s709(2018)
s709 的低对比度色调曲线,可为图像提供柔和的色调。阴影和中间色调部分具有相对自然的响应,高光部分被适当压缩,以保留摄影机的高宽容度。s709 能制作出低饱和度画面,色彩渲染效果接近于电影胶片,让人物肤色呈现柔和、舒适的色彩。
2018年新出的这款LUT,相较于TypeA,个人感觉多了一些暖色,反差更小,整体亮度值更低,肤色也更好,算是TypeA的改良版。出于习惯问题墨鱼还未在项目中正式使用过此LUT,不过建议大家多多尝试,就目前静帧的结果来看,作为 log to 709 LUT 相当不错,底子非常适合调色。



官方资料:
s709 has a low contrast tone curve to deliver soft tonal look for the image. The shadows and midtones have relatively natural responses, while the highlights are compressed to preserve wide latitude of the camera. s709 has a softer low saturated image, and renders colors closer to those of the film characters. It delivers soft and comfortable skin tone.
以上是达芬奇自带的四个 Sony LUTs 介绍。
永远不要相信什么“一个LUT拯救世界”说法,在不同情况下选择是否使用LUT、使用哪个LUT,才是做好调色的关键。
附 - 2018款s709LUT下载链接:https://www.pro.sony.com.cn/cn/download/x75.htm
