科技跃迁 电容新纪元

··Technological Leap to a New Era of Capacitors··

01

重塑游戏与操控未来

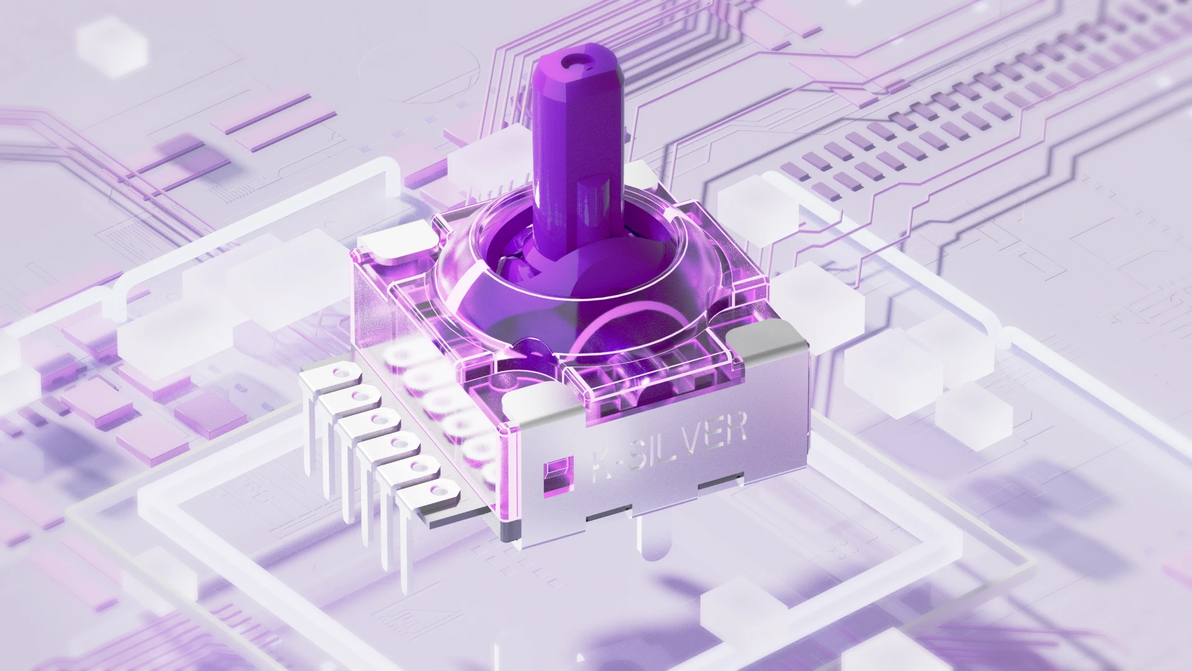

紫麒麟电感应摇杆，搭载高精度电容IC技术，这一革命性的设计意味着从模拟信号的旧时代跨越到了数字信号的新纪元。通过精密的电路处理，每一次细微的摇杆动作都能被精准捕捉并转化为无损的数字信号，确保每一次操作都能得到即时、准确的响应。

Purple Kirin's electro-inductive joystick is equipped with high-precision capacitive IC technology, a revolutionary design that signifies a leap from the old days of analog signals to a new era of digital signals. Through precise circuit processing, every subtle joystick movement can be accurately captured and converted into lossless digital signals, ensuring an instant and accurate response to every operation.

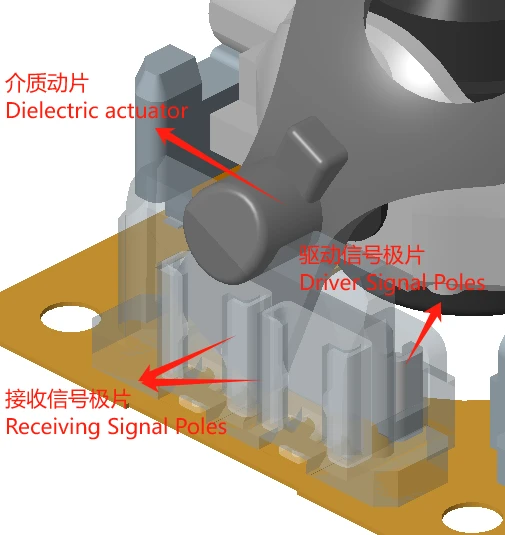

工作原理：基于极板电容原理，采用差分式双电容IC，一边是驱动信号的极片，另一边是两个接收信号的极片，而在电容中间有一个扇形的塑料介质动片，直接连接在摇杆摇臂上，通过摇臂运动带动介质动片旋转（与电容极板非接触），从而引起差分式双电容的变化，经过高精度电容IC处理后输出数字线性电压。

Based on the principle of polar plate capacitance, using differential double capacitor IC, one side of the drive signal pole piece, the other side of the two receiving signal pole piece, and in the middle of the capacitance there is a fan-shaped plastic dielectric moving piece, directly connected to the rocker rocker arm, through the rocker arm movement to drive the dielectric moving piece of the rotating (and capacitance pole piece of the non-contact), which causes the change of the differential double capacitance, and after high-precision capacitance IC processing the output of the digital Linear voltage.

02

告别磁干扰，纯净操控体验

不同于磁感应摇杆，紫麒麟采用了非磁感应设计，从根本上解决了磁干扰这一困扰玩家的难题。不仅如此，电容采集电路还采用了高抗电源干扰的技术，所以输出数字信号不随电源波动变化，因此对电源纹波的要求极低。相较于霍尔方案，电容对温度更不敏感，稳定性也更好。 无论是在电磁环境复杂的电竞场馆，还是日常使用的各种场景，紫麒麟都能保持信号的纯净与稳定。

Unlike magnetic induction joysticks, the Purple Unicorn adopts a non-magnetic induction design, which fundamentally solves the problem of magnetic interference that plagues players. Not only that, the capacitor acquisition circuit also adopts high anti-power interference technology, so the output digital signal does not change with power fluctuation, so the requirement of power ripple is extremely low. Compared with the Hall program, the capacitor is less sensitive to temperature and has better stability. Whether in gaming venues with complex electromagnetic environments or various scenarios of daily use, Purple Unicorn is able to maintain the purity and stability of the signal.

03

极致性能，定义新标准

紫麒麟电感应摇杆拥有目前市场上最高的分辨率，能够细腻捕捉每一个微小的动作变化；最高回报率保证了数据传输的实时性，让操作与反馈之间零延迟；最平均的键值分布则确保了无论在哪个角度操作，都能获得一致且流畅的手感。零抖动设计更是将误差降至冰点，每一次操作都精准无误。

The Purple Unicorn Induction Joystick has the highest resolution on the market today, capturing every tiny change in movement; the highest return rate ensures real-time data transmission with zero delay between operation and feedback; and the most even distribution of key values ensures a consistent and smooth feel no matter what angle you operate from. The zero-jitter design reduces the error to the freezing point, so that every operation is precise and accurate.

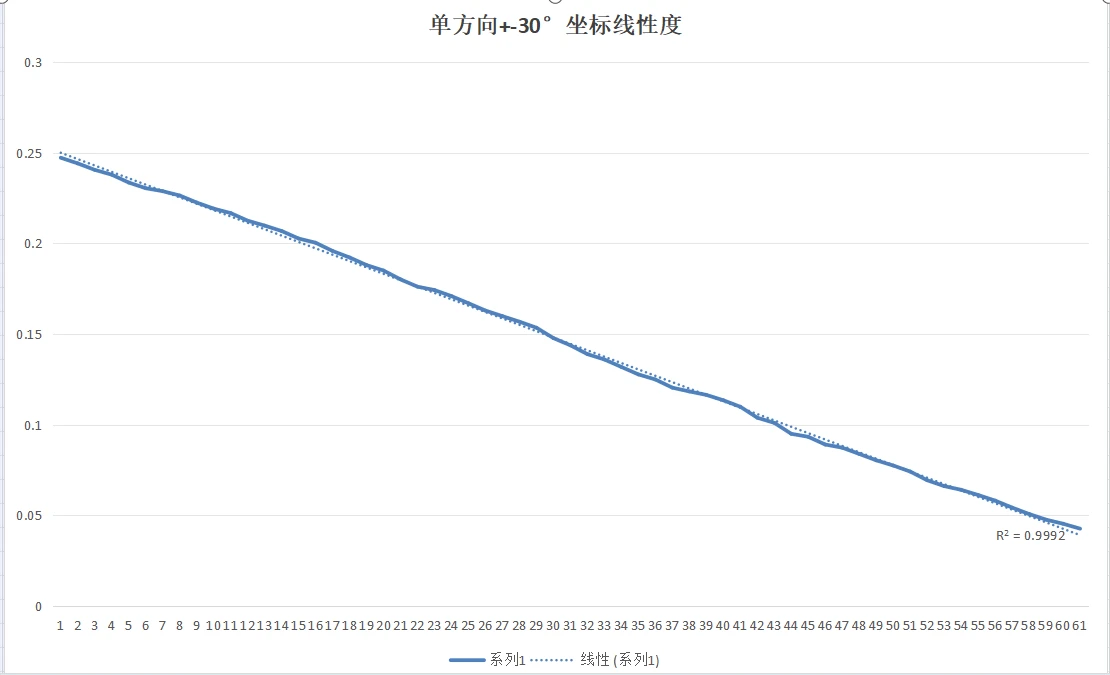

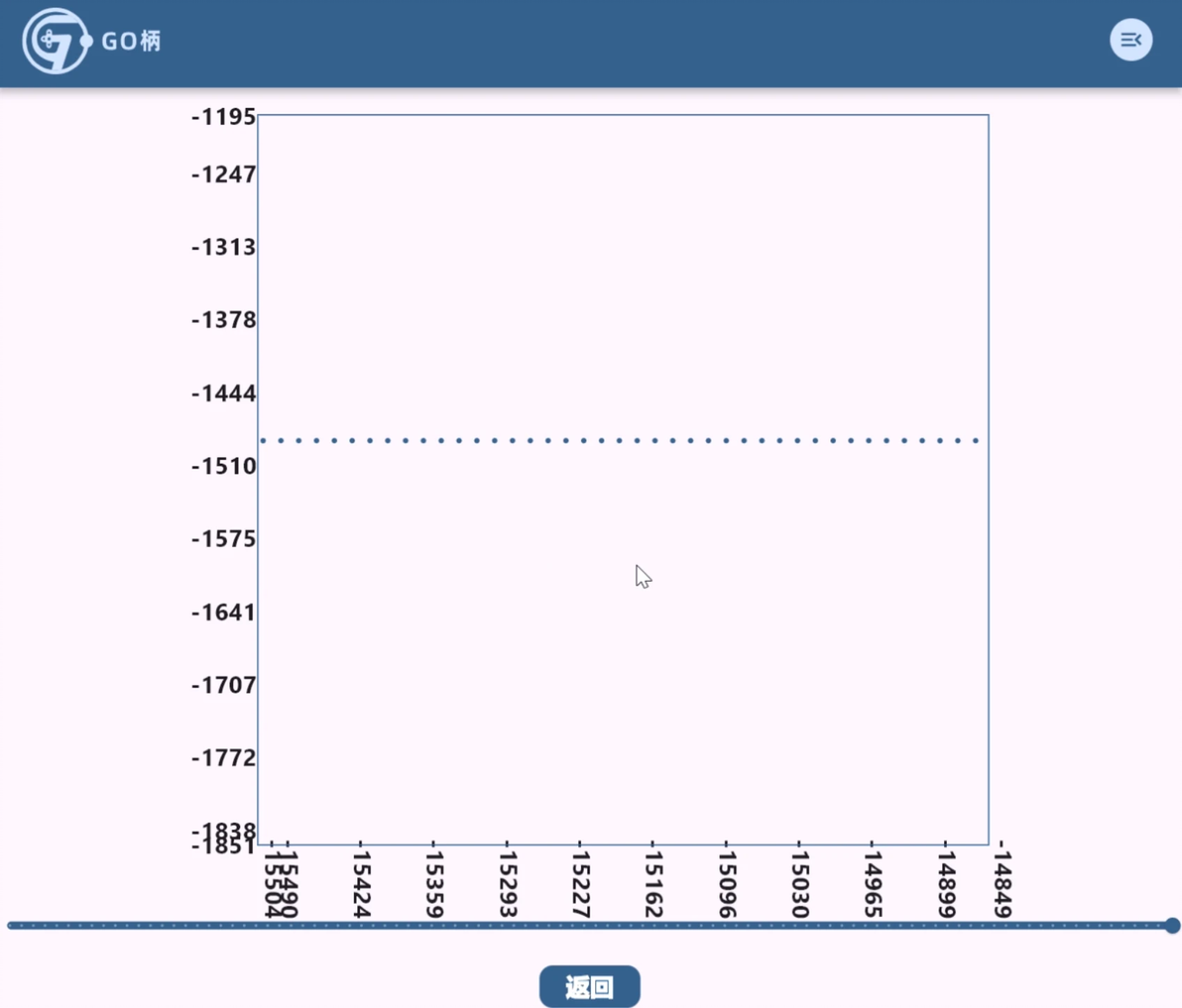

线性数据 linear data

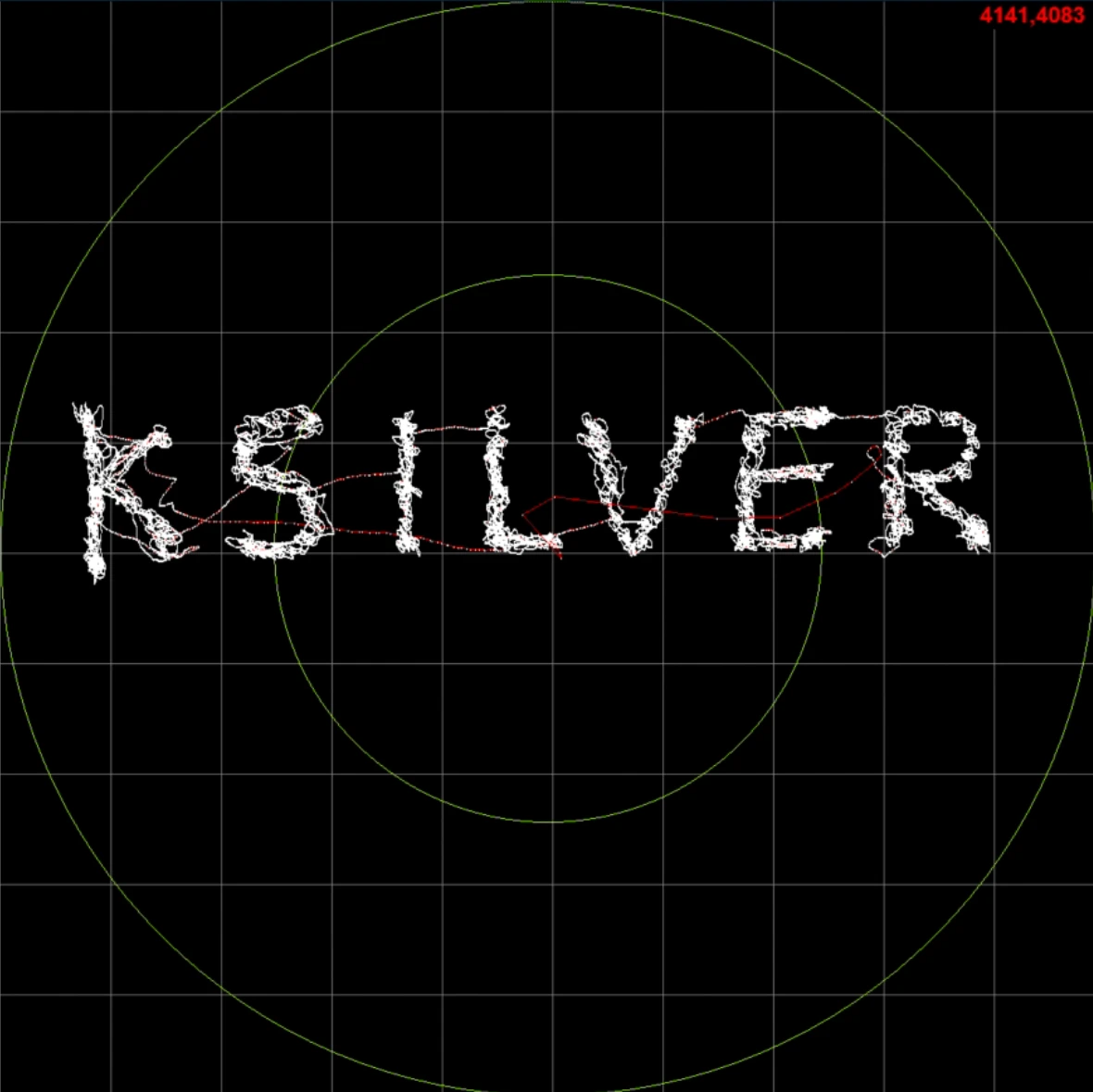

画圆数据 Circling data

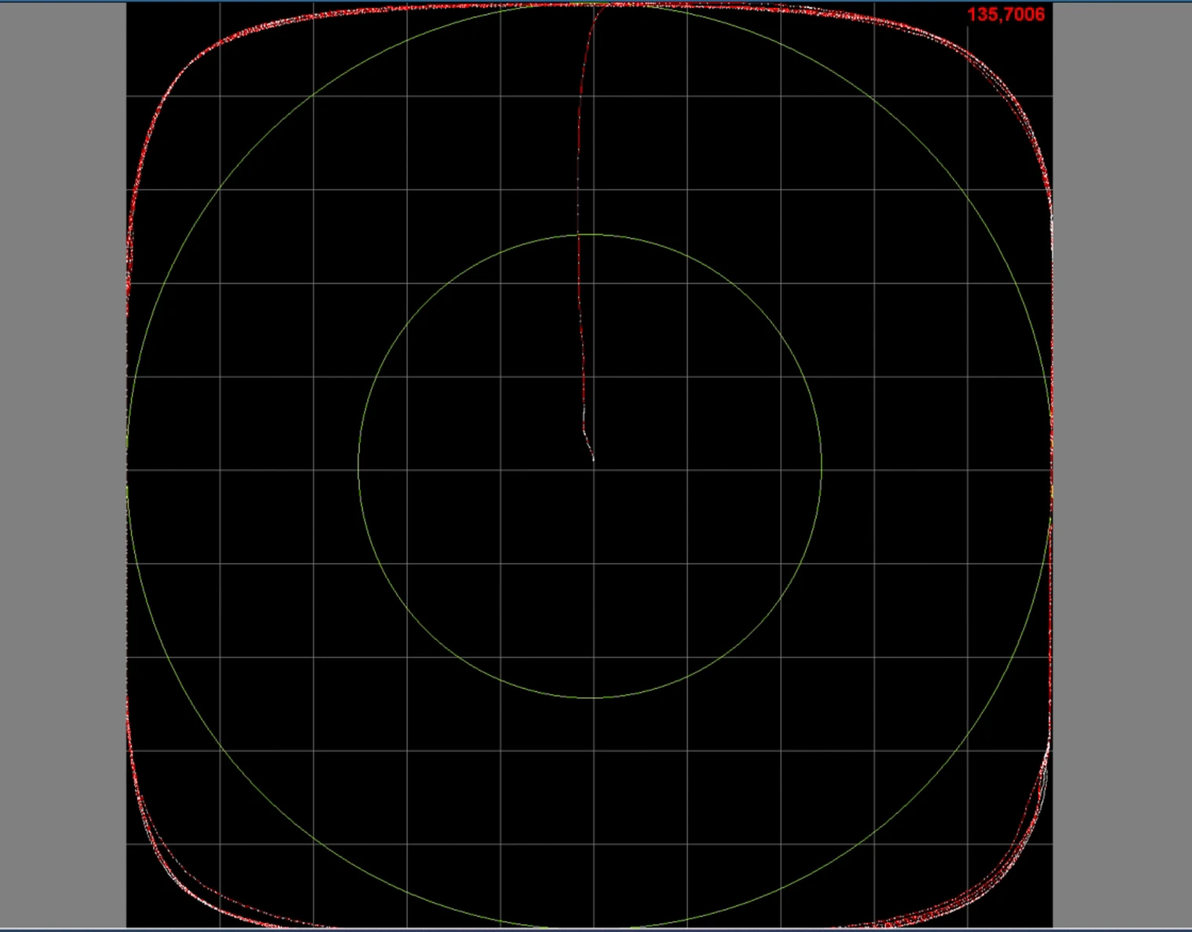

键值分布 key-value distribution

实操展示 Hands-on Demonstration

04

节能高效，耐用可靠

在追求极致性能的同时，紫麒麟也不忘对能耗的严格把控。理论上可以做到3.3V供电，70uA-700uA以内的耗电，比霍尔和TMR更省电。 紫麒麟电感应摇杆实现了更低的功耗，高精度与可靠性的双重加持，让紫麒麟成为值得信赖的长期伙伴。

While pursuing the ultimate performance, Purple Unicorn does not forget to strictly control the energy consumption. Theoretically, it can achieve 3.3V power supply and power consumption within 70uA-700uA, which is more power-saving than Hall and TMR. Purple Kirin's electric induction joystick realizes lower power consumption, and the double addition of high precision and reliability makes Purple Kirin a trustworthy long-term partner.

额定电压：DC 2.6V & 3.6V

Rated voltage：DC 2.6V & 3.6V

中心点误差值：50%±5%

Center point error value：50%±5%

摇杆使用有效角度：最大 30°

Operation angle of lever：30° max

摇杆作用力：12±3mN.m(120±30gf)

Operating force of lever：12±3mN.m(120±30gf)

复归值：有效行程的 3%以内

value of reset position：Within 3% of effective travel
